EPSON低電壓晶振,X1G004241000720,SG3225VAN儀器儀表晶振

頻率為：106.250000 MHz，尺寸：3.2x2.5x1.2mm
EPSON低電壓晶振,X1G004241000720,SG3225VAN儀器儀表晶振，日本進口晶振，EPSON愛普生晶振，型號：SG3225VAN，編碼為：X1G004241000720，頻率為：106.250000 MHz，小體積晶振尺寸：3.2x2.5x1.2mm封裝，六腳貼片晶振，SPXO石英晶體振蕩器，LVDS輸出差分晶振，石英貼片晶振，有源晶振，SMD晶振，無鉛環保晶振，工作溫度范圍：-40℃至+85℃，能夠很容易地識別小信號。具有超小型，輕薄型，低抖動，低功耗，低耗能，低電壓，低損耗，低相位噪聲，高精度，高性能，高品質等特點。差分晶體，被廣泛應用于：通訊設備、無線網絡，藍牙模塊，物聯網，機頂盒、光端機、醫療設備，安防設備、路由器/交換機、儀器儀表，光纖通信，導航儀，以太網等應用。
訂購熱線：0755-27839151

EPSON低電壓晶振,X1G004241000720,SG3225VAN儀器儀表晶振，日本進口晶振，EPSON愛普生晶振，型號：SG3225VAN，編碼為：X1G004241000720，頻率為：106.250000 MHz，小體積晶振尺寸：3.2x2.5x1.2mm封裝，六腳貼片晶振，SPXO石英晶體振蕩器，LVDS輸出差分晶振，石英貼片晶振，有源晶振，SMD晶振，無鉛環保晶振，工作溫度范圍：-40℃至+85℃，能夠很容易地識別小信號。具有超小型，輕薄型，低抖動，低功耗，低耗能，低電壓，低損耗，低相位噪聲，高精度，高性能，高品質等特點。差分晶體，被廣泛應用于：通訊設備、無線網絡，藍牙模塊，物聯網，機頂盒、光端機、醫療設備，安防設備、路由器/交換機、儀器儀表，光纖通信，導航儀，以太網等應用。

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

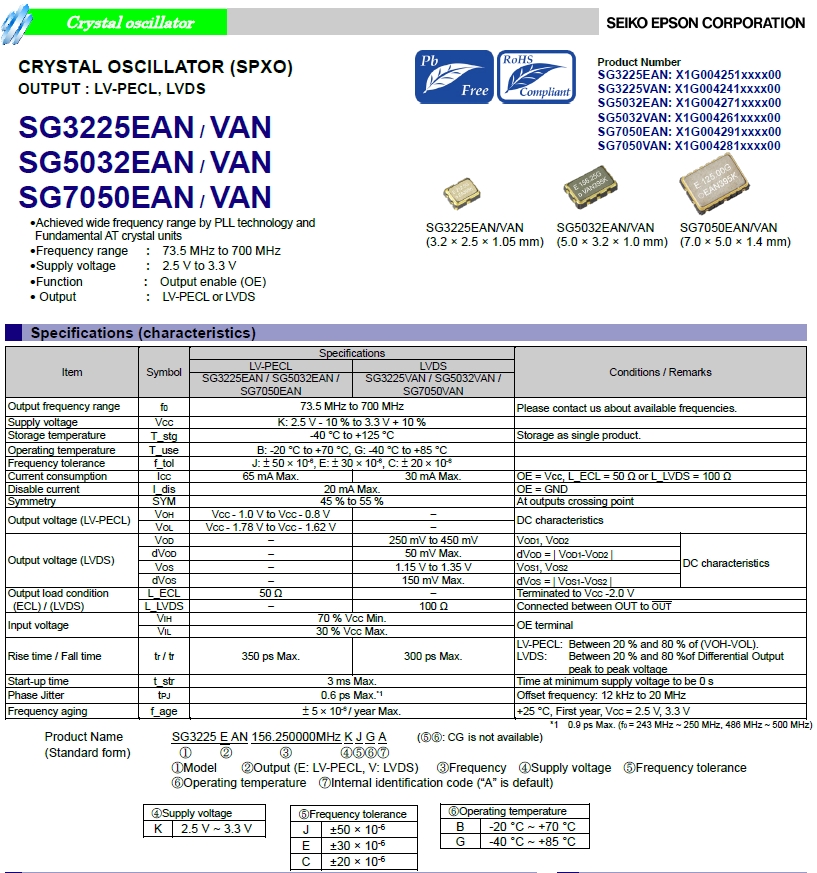

EPSON低電壓晶振,X1G004241000720,SG3225VAN儀器儀表晶振  參數表

Item Symbol Specifications Condition/Remarks
LV-PECL LVDS
SG3225EAN SG3225VAN
SG5032EAN SG5032VAN
SG7050EAN SG7050VAN
Output frequency range f0 106.250MHz Please contact us about available frequencies.
Supply voltage VCC K : 2.5 V to 3.3 V VCC = ±10 %
Storage temperature T_stg -40 °C to +125 °C Store as bare product.
Operating temperature T_use B : -20 °C to +70 °C
G : -40 °C to +85 °C
Frequency tolerance f_tol C : ±20 × 10-6
E : ±30 × 10-6
J : ±50 × 10-6
Current consumption ICC 65m A Max. 30 mA Max. OE = VCC
L_ECL = 50 Ω or L_LVDS = 100 Ω
f0 = 700 MHz
Disable current I_dis 20 mA Max. OE = GND
Symmetry SYM 45 % to 55 % At outputs crossing point
Output voltage VOH VCC - 1.0 V to VCC - 0.8 V - DC characteristics
(LV-PECL) VOL VCC - 1.78 V to VCC - 1.62 V -
Output voltage VOD - 250 mV to 450 mV VOD1 , VOD2 DC characteristics
(LVDS) dVOD - 50 mV Max. dVOD = | VOD1 - VOD2 |
VOS - 1.15 V to 1.35 V VOS1 , VOS2
dVOS - 150 mV Max. dVOS = | VOS1 - VOS2 |
Output load condition L_ECL 50 Ω - Terminated to VCC - 2.0 V
(ECL)/(LVDS) L_LVDS - 100 Ω Connected between OUT to OUT
Input voltage VIH 70 % VCC Min. OE terminal
VIL 30 % VCC Max.
Rise time / Fall time tr/tf 350 ps Max. - Between 20 % and 80 % of ( VOH - VOL )
- 300 ps Max. Between 20 % and 80 %of Differential Output peak to peak voltage.
Start-up time t_str 3 ms Max. Time at minimum supply voltage to be 0 s
Phase Jitter tPJ 0.6 ps Max. *1 Offset frequency: 12 kHz to 20 MHz
Frequency aging f_aging ±5 × 10-6 / year Max. +25 °C , VCC = 2.5 V or 3.3 V
First year.

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

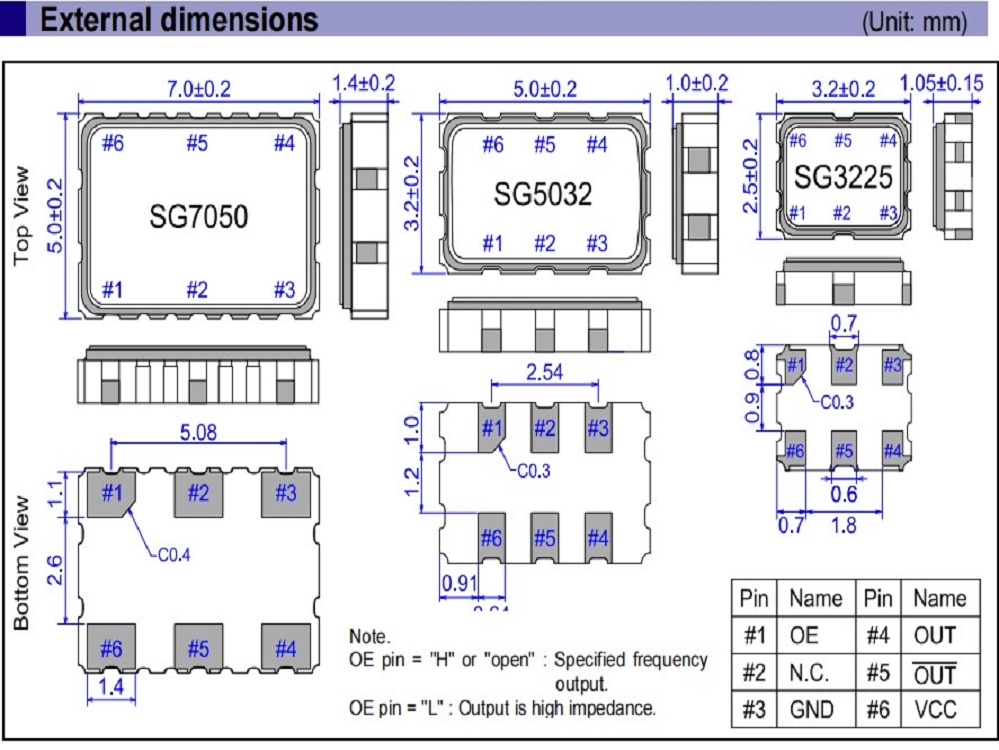

EPSON低電壓晶振,X1G004241000720,SG3225VAN儀器儀表晶振  尺寸圖

SG3225EAN，SG3225VAN,SG5032EAN,SG5032VAN,SG7050EAN,SG7050VAN-1


EPSON低電壓晶振,X1G004241000720,SG3225VAN儀器儀表晶振

產品特點：

通過PLL技術和基本AT晶體單元實現寬頻率范圍

頻率范圍： 73.5MHz至700MHz

電源電壓： 2.5V到3.3V 貼片晶振

功能：輸出啟用（OE）

輸出： LV-PECL或LVDS



SG3225EAN SG5032EAN SG7050EAN SG3225VAN SG5032VAN SG7050VAN 1


編碼 晶振廠家 型號 頻率 尺寸 輸出方式
X1G004241000100 EPSON晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241000200 EPSON晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241000400 EPSON晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241000500 EPSON晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241000600 EPSON晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241000700 EPSON晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241000800 EPSON晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241000900 EPSON晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241001000 EPSON晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241001100 EPSON晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241001200 EPSON晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241001400 EPSON晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241001500 EPSON晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241001600 EPSON晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241001700 EPSON晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241002000 EPSON晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241002100 EPSON晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241002300 EPSON晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241002400 EPSON晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241002500 EPSON晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241002600 EPSON晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241002700 EPSON晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241002800 EPSON晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241002900 EPSON晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241003000 EPSON晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241003100 EPSON晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241003300 EPSON晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241003400 EPSON晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241003500 EPSON晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241003600 EPSON晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241003900 EPSON晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241004000 EPSON晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241004200 EPSON晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241004300 EPSON晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241004400 EPSON晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241004500 EPSON晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241004600 EPSON晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241004700 EPSON晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241004800 EPSON晶振 SG3225VAN 148.500000 MHz 3225晶振 LVDS
X1G004241004900 EPSON晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241005000 EPSON晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241005200 EPSON晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241005300 EPSON晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241005400 EPSON晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241005500 EPSON晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241005800 EPSON晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241005900 EPSON晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241006100 EPSON晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241006200 EPSON晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241006300 EPSON晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241006400 EPSON晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241006500 EPSON晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241006600 EPSON晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241006700 EPSON晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241006800 EPSON晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241006900 EPSON晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241007100 EPSON晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241007200 EPSON晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241007300 EPSON晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241007400 EPSON晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241007900 EPSON晶振 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241008000 EPSON晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241008300 EPSON晶振 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241008400 EPSON晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241008700 EPSON晶振 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241008800 EPSON晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241009200 EPSON晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241010000 EPSON晶振 SG3225VAN 133.333333 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241010100 EPSON晶振 SG3225VAN 148.350000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241010200 EPSON晶振 SG3225VAN 114.285000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241010300 EPSON晶振 SG3225VAN 250.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241010400 EPSON晶振 SG3225VAN 350.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241010500 EPSON晶振 SG3225VAN 80.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241010600 EPSON晶振 SG3225VAN 98.304000 MHz 3.20 x 2.50 x 1.20 mm LVDS
X1G004241010800 EPSON晶振 SG3225VAN 297.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS
