愛普生LV-PECL晶振,X1G0042510009,SG3225EAN振蕩器,6G發射器晶振

尺寸3.2*2.5mm,頻率212.5MHZ

愛普生LV-PECL晶振,X1G0042510009,SG3225EAN振蕩器,6G發射器晶振，尺寸3.2*2.5mm,頻率212.5MHZ,支持輸出LV-PECL，LV-PECL輸出晶振，差分晶體振蕩器，有源晶體振蕩器，OSC晶振，石英晶體振蕩器，六腳石英差分晶振，低電壓振蕩器，低相位差分晶振，高精度測試設備晶振，低耗能差分晶振，低功耗振蕩器，無線通信晶振，6G放大器晶振，交換機晶振，儀器儀表專用振蕩器.

有源晶體振蕩器產品主要應用交換機，無線通信，6G放大器，儀器儀表，測試與測量，路由器，光模塊，6G應用產品等領域。愛普生LV-PECL晶振,X1G0042510009,SG3225EAN振蕩器,6G發射器晶振.


訂購熱線：0755-27839151

愛普生LV-PECL晶振,X1G0042510009,SG3225EAN振蕩器,6G發射器晶振，尺寸3.2*2.5mm,頻率212.5MHZ,支持輸出LV-PECL，LV-PECL輸出晶振，差分晶體振蕩器，有源晶體振蕩器，OSC晶振，石英晶體振蕩器，六腳石英差分晶振，低電壓振蕩器，低相位差分晶振，高精度測試設備晶振，低耗能差分晶振，低功耗振蕩器，無線通信晶振，6G放大器晶振，交換機晶振，儀器儀表專用振蕩器.

有源晶體振蕩器產品主要應用交換機，無線通信，6G放大器，儀器儀表，測試與測量，路由器，光模塊，6G應用產品等領域。愛普生LV-PECL晶振,X1G0042510009,SG3225EAN振蕩器,6G發射器晶振.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

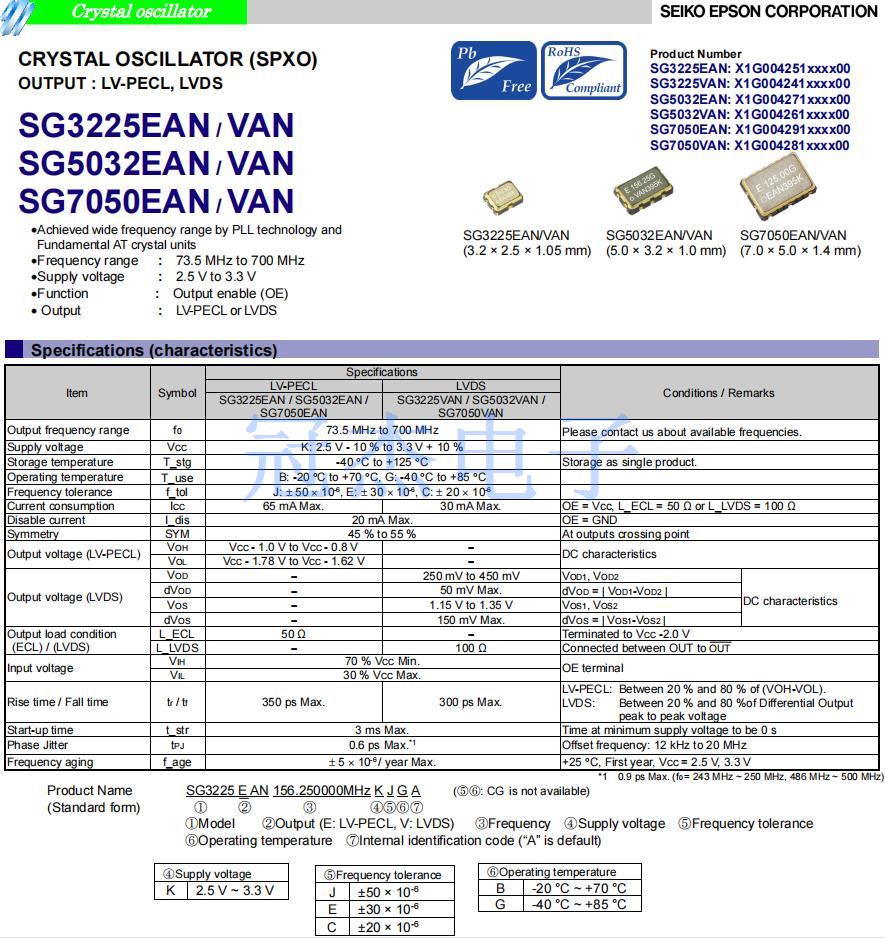

愛普生LV-PECL晶振,X1G0042510009,SG3225EAN振蕩器,6G發射器晶振         參數表

Item Symbol Specifications Conditions / Remarks
LV-PECL LVDS
SG3225EAN / SG5032EAN /
SG7050EAN 		SG3225VAN / SG5032VAN /
SG7050VAN
Output frequency range 0 212.5MHz Please contact us about available frequencies.
Supply voltage VCC K: 2.5 V - 10 % to 3.3 V + 10 %
Storage temperature T_stg -40 °C to +125 °C Storage as single product.
Operating temperature T_use B: -20 °C to +70 °C, G: -40 °C to +85 °C
Frequency tolerance f_tol J: ± 50 × 10-6 , E: ± 30 × 10-6 , C: ± 20 × 10-6
Current consumption ICC 65 mA Max. 30 mA Max. OE = Vcc, L_ECL = 50 Q or L_LVDS = 100 Q
Disable current I_dis 20 mA Max. OE = GND
Symmetry SYM 45 % to 55 % At outputs crossing point
Output voltage (LV-PECL) VOH VCC - 1.0 V to VCC - 0.8 V − DC characteristics
VOL VCC - 1.78 V to VCC - 1.62 V −
Output voltage (LVDS) VOD − 250 mV to 450 mV VOD1, VOD2 DC characteristics
VOD − 50 mV Max. dVOD = | VOD1-VOD2 |
VOS − 1.15 V to 1.35 V VOS1, VOS2
VOS − 150 mV Max . dVOS = | VOS1-VOS2 |
Output load condition
  (ECL) / (LVDS) 		L_ECL 50 Q − Terminated to VCC -2.0 V
L_LVDS − 100 Q Connected between OUT to OUT
 Input voltage VIH 70 % VCC Min . OE terminal
VIL 30 % VCC Max.
Rise time / Fall time tr / tf 350 ps Max. 300 ps Max. LV-PECL: Between 20 % and 80 % of (VOH-VOL) .
LVDS:       Between 20 % and 80 %of Differential Output
                  peak to peak voltage
Start-up time t_str 3 ms Max. Time at minimum supply voltage to be 0 s
Phase Jitter PJ 0.6 ps Max .*1 Offset frequency: 12 kHz to 20 MHz
Frequency aging f_age ± 5 × 10-6 / year Max. +25 °C, First year, VCC = 2.5 V, 3.3 V
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

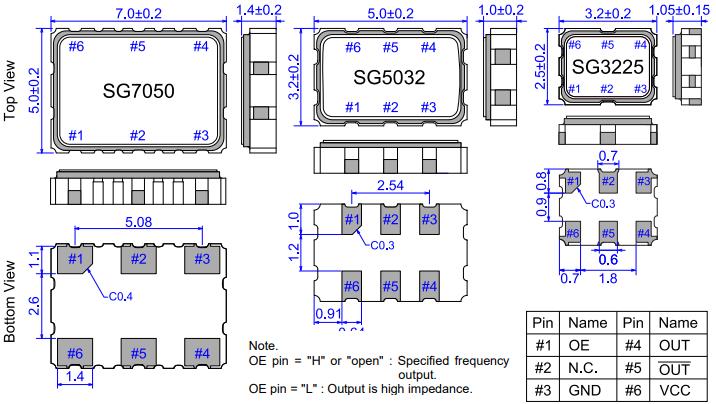

愛普生LV-PECL晶振,X1G0042510009,SG3225EAN振蕩器,6G發射器晶振     尺寸圖SG3225EAN 大尺寸

有源晶振產品特性：

通過鎖相環技術實現了寬頻率范圍

基本AT晶體單位

頻率范圍:73.5 MHz至700 MHz

電源電壓:2.5 V至3.3 V

功能:輸出使能(OE)

輸出:LV-PECL或LVDS

SG3225EAN SG3225VAN SG5032EAN SG5032VAN SG7050 更多相關EPSON晶振型號

編碼 Model/型號 Frequency/頻率 LxWxH/尺寸 Output Wave/輸出方式 Supply Voltage/電源電壓 Ope Temperature/工作溫度
X1G0023510132 SG-770SCD 98.304000 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0023510808 SG-770SCD 200.000000 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0023610004 SG-770SDD 155.520000 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0023610007 SG-770SDD 125.000000 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0023610008 SG-770SDD 156.250000 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0023610012 SG-770SDD 125.000000 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 2.375 to 2.625 V -20 to 70 °C
X1G0023610103 SG-770SDD 122.880000 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0023610105 SG-770SDD 150.000000 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0028210009 SG-771PCD 156.253906 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0028210010 SG-771PCD 156.258600 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 3.135 to 3.465 V -10 to 70 °C
X1G0028210107 SG-771PCD 156.250000 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0028210109 SG-771PCD 161.132800 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0028210115 SG-771PCD 106.250000 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0028210116 SG-771PCD 133.000000 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0028210117 SG-771PCD 133.333300 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0028210118 SG-771PCD 98.304000 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0028210121 SG-771PCD 156.250000 MHz 7.00 x 5.00 x 1.80 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0042510001 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510002 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510003 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510004 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510006 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510007 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510008 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510009 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510010 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510011 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510012 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510013 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510014 SG3225EAN 155.520000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510015 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510016 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510017 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510018 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510021 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510022 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510024 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510025 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510026 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510027 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510028 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510029 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510030 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm 差分晶體振蕩器 2.250 to 3.630 V -40 to 85 °C
X1G0042510031 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510032 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510033 SG3225EAN 155.520000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510034 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510035 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510036 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510037 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510039 SG3225EAN 700.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510040 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510041 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510043 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510044 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510045 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510046 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510047 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
