愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振

尺寸7.0*5.0mm,頻率122.88MHZ

愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振，尺寸7.0*5.0mm,頻率122.88MHZ,支持輸出LV-PECL，石英差分晶振，OSC振蕩器，差分晶振，LV-PECL振蕩器，日本進口晶振，愛普生差分振蕩器，低抖動振蕩器，低電壓差分晶振，低耗能差分振蕩器，無線設備差分晶振，光模塊差分晶振，高品質差分振蕩器，有源差分晶振，低相噪差分晶振，產品適用于智能產品，儀器設備，光模塊，無線設備等領域。

差分晶體振蕩器(DXO)是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號,從而消除了共模噪聲,并產生一個更高性能的系統。差分晶振一般為六腳貼片，輸出類型分為好幾種,LVDS,LV-PECL，具有低電平,低抖動，低功耗等特性。愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振.

訂購熱線：0755-27839151

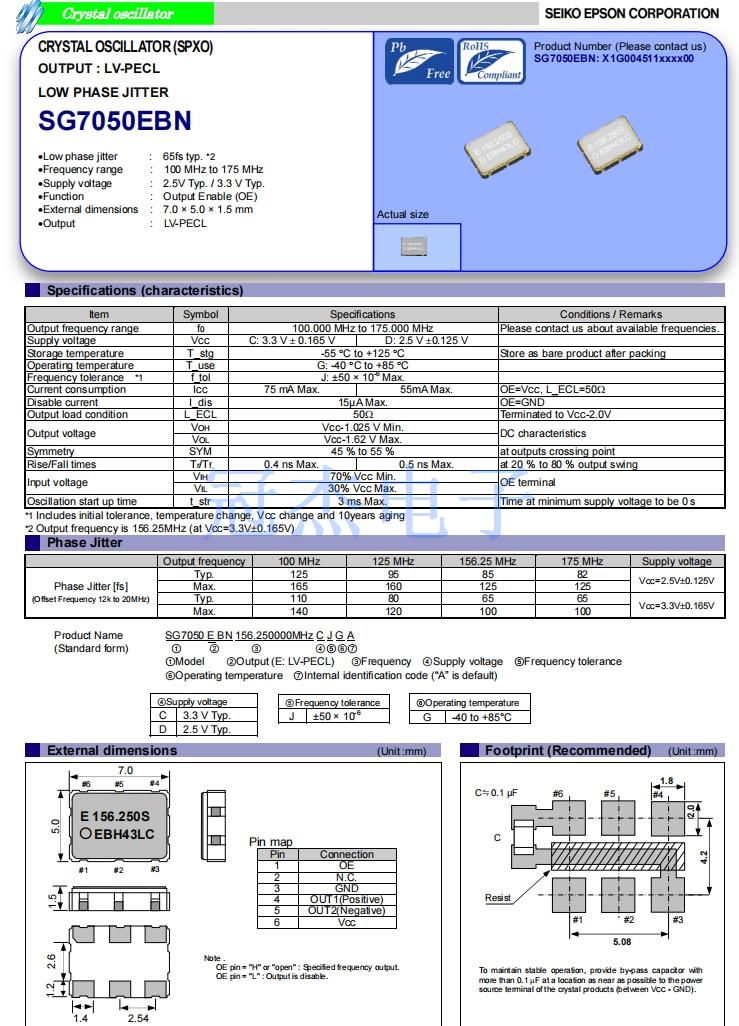

愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振 參數表

Item

Symbol

Specifications

Conditions / Remarks

Output frequency range

122.88MHz

Please contact us about available frequencies.

Supply voltage

VCC

C: 3.3 V 土 0.165 V

D: 2.5 V 土0.125 V

Storage temperature

T_stg

-55 。C to +125 。C

Store as bare product after packing

Operating temperature

T_use

G: -40 。C to +85 。C

Frequency tolerance *1

f_tol

J: ±50 × 10-6 Max.

Current consumption

ICC

75 mA Max.

55mA Max.

OE=VCC, L_ECL=50Ω

Disable current

I_dis

15μA Max.

OE=GND

Output load condition

L_ECL

50Ω

Terminated to VCC-2.0V

Output voltage

VOH

Vcc-1.025 V Min.

DC characteristics

VOL

Vcc-1.62 V Max.

Symmetry

SYM

45 % to 55 %

at outputs crossing point

Rise/Fall times

Tr/Tf

0.4 ns Max.

0.5 ns Max.

at 20 % to 80 % output swing

Input voltage

VIH

70% VCC Min.

OE terminal

VIL

30% VCC Max.

Oscillation start up time

t_str

3 ms Max.

Time at minimum supply voltage to be 0 s

	Phase Jitter
		Output frequency	100 MHz	125 MHz	156.25 MHz	175 MHz	Supply voltage
Phase Jitter [fs] (Offset Frequency 12k to 20MHz)		Typ.	125	95	85	82	VCC=2.5V土0.125V
		Max.	165	160	125	125
		Typ.	110	80	65	65	VCC=3.3V土0.165V
		Max.	140	120	100	100

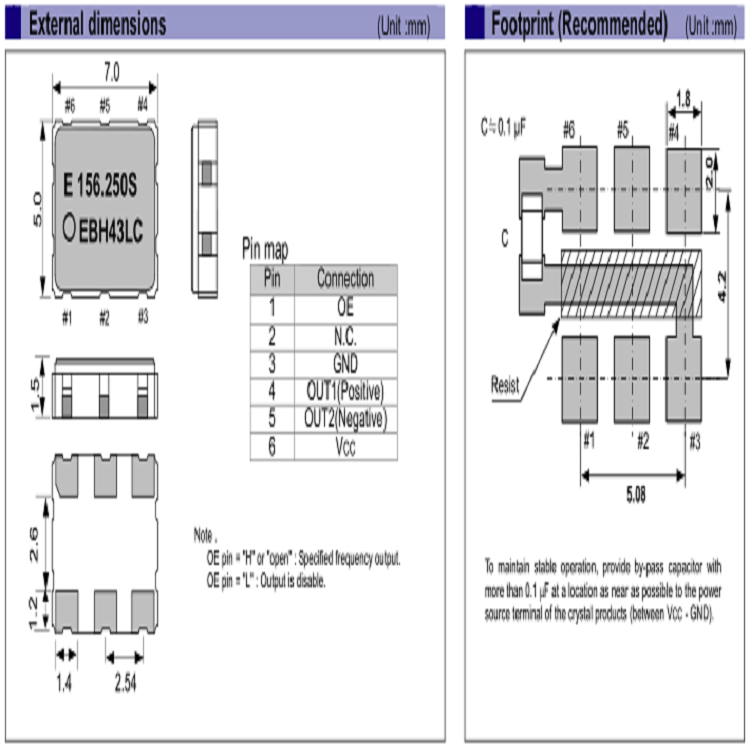

愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振 尺寸圖

產品特性：

低相位抖動:65fs

頻率范圍:100mhz~175mhz

供電電壓:2.5V/3.3V類型

功能:輸出使能(OE)

外部尺寸:7.0×5.0×1.5 mm

輸出:LV-PECL

更多相關EPSON日本愛普生晶振型號

編碼	Model/型號	Frequency/頻率	LxWxH/尺寸	Output Wave/輸出方式	Supply Voltage/電源電壓	Ope Temperature/工作溫度
X1G0042510029	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510030	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510031	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510032	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510033	SG3225EAN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510034	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510035	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510036	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510037	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510039	SG3225EAN	700.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510040	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510041	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510043	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510044	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510045	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510046	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510047	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510048	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510049	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510050	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510051	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510053	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510054	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510055	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510056	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510059	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510060	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510062	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510063	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510064	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510065	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510066	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510067	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510068	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510069	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510070	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510072	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510073	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510074	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510079	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510080	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510083	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510084	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510087	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510088	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510091	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510092	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510100	SG3225EAN	114.285000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510103	SG3225EAN	644.531200 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510104	SG3225EAN	250.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510105	SG3225EAN	350.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510106	SG3225EAN	80.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510107	SG3225EAN	98.304000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510111	SG3225EAN	133.330000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510112	SG3225EAN	144.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510113	SG3225EAN	174.703100 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510114	SG3225EAN	320.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510115	SG3225EAN	500.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510121	SG3225EAN	161.132812 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710001	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL差分有源振蕩器	2.250 to 3.630 V	-40 to 85 °C
X1G0042710002	SG5032EAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710004	SG5032EAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710005	SG5032EAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710006	SG5032EAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710007	SG5032EAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710008	SG5032EAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710009	SG5032EAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710010	SG5032EAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710011	SG5032EAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710012	SG5032EAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710013	SG5032EAN	155.520000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710014	SG5032EAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710015	SG5032EAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710016	SG5032EAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710017	SG5032EAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710019	SG5032EAN	700.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710020	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710021	SG5032EAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710023	SG5032EAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710024	SG5032EAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710025	SG5032EAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
