愛普生振晶振,SG2016HHN車規振蕩器,X1G0062310001,6G無線差分晶振

尺寸2.0x1.6mm,頻率156.25MHz

愛普生振晶振,SG2016HHN車規振蕩器,X1G0062310001,6G無線差分晶振，尺寸2.0x1.6mm,頻率156.25MHz,輸出邏輯HCSL,工作溫度-40 to+105°C，SPXO差分晶體振蕩器，愛普生差分晶振，日本進口差分晶振，HCSL,輸出差分晶振，汽車音響差分晶振，汽車氛圍燈差分振蕩器，6G無線設備差分晶振，低抖動差分晶振，低相位差分振蕩器，低電壓差分晶振，愛普生的SG2016HGN / SG2520HGN, SG2016HHN / SG2520HHN進口有源晶體產品系列支持HCSL (High Speed電流轉向邏輯)，并滿足時間合規抖動要求，直至PCIe Gen6。最大90ps相位抖動，支持頻率從25mhz到500mhz，產品組覆蓋整個系統大多數網絡、數據中心和通信應用的要求。

有源晶體振蕩器產品主要應用范圍：汽車氛圍燈，汽車音響，6G無線設備，網絡產品，儀器儀表，平板電腦，智能家居，通信模塊，通信設備采用PCIe Gen5或gen6(SSD、網卡等)等領域。愛普生振晶振,SG2016HHN車規振蕩器,X1G0062310001,6G無線差分晶振.


訂購熱線：0755-27839151

愛普生振晶振,SG2016HHN車規振蕩器,X1G0062310001,6G無線差分晶振，尺寸2.0x1.6mm,頻率156.25MHz,輸出邏輯HCSL,工作溫度-40 to+105°C，SPXO差分晶體振蕩器，愛普生差分晶振，日本進口差分晶振，HCSL,輸出差分晶振，汽車音響差分晶振，汽車氛圍燈差分振蕩器，6G無線設備差分晶振，低抖動差分晶振，低相位差分振蕩器，低電壓差分晶振，愛普生的SG2016HGN / SG2520HGN, SG2016HHN / SG2520HHN進口有源晶體產品系列支持HCSL (High Speed電流轉向邏輯)，并滿足時間合規抖動要求，直至PCIe Gen6。最大90ps相位抖動，支持頻率從25mhz到500mhz，產品組覆蓋整個系統大多數網絡、數據中心和通信應用的要求。

有源晶體振蕩器產品主要應用范圍：汽車氛圍燈，汽車音響，6G無線設備，網絡產品，儀器儀表，平板電腦，智能家居，通信模塊，通信設備采用PCIe Gen5或gen6(SSD、網卡等)等領域。愛普生振晶振,SG2016HHN車規振蕩器,X1G0062310001,6G無線差分晶振.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

愛普生振晶振,SG2016HHN車規振蕩器,X1G0062310001,6G無線差分晶振           參數表

Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Maximum supply voltage VCC -0.3 - 4.0 V
Input voltage Vin -0.3 - VCC + 0.5 V OE/    terminal
Storage temperature range T_stg -55 - +125 °C
[ 3 ] Operating Range
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Supply voltage VCC 2.375 2.5 2.625 V
3.135 3.3 3.465 V
Supply voltage GND 0.0 0.0 0.0 V
Operating temperature range T_use -40 +25 +85 °C
-40 +25 +105 °C
HCSL load condition L_HCSL 50 Ω
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Output frequency *1 fo
- 156.25 MHz
Frequency tolerance *2 f_tol -20 - +20 ×10-6
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Startup time t_str - - 10 ms t = 0 at 90 % VCC
Current consumption ICC - - 35 mA fo ≤ 212 MHz
- - 40 mA fo > 212 MHz
Disable current I_dis - - 25 mA OE = GND
Stand-by current I_std - - 30 μA      = GND, T_use Max. = +85 °C
- - 60 μA      = GND, T_use Max. = +105 °C
Rise time / Fall time tr / tf - - 0.7 ns 20 % - 80 % (VOH - VOL)
Differential output
rise slew rate / fall slew rate 		Rr / Rf 2 - 10 V/ns Between -0.15 V and 0.15 V
of differential output
Symmetry SYM 45 50 55 % At output crossing point
Output voltage VOH 0.5 - 0.7 V Output option: A, fo ≤ 212 MHz
0.4 - 0.65 V Output option: A, fo > 212 MHz
0.6 - 0.8 V Output option: B, fo ≤ 212 MHz
0.5 - 0.75 V Output option: B, fo > 212 MHz
VOL -0.15 - 0.15 V
Differential swing VSW 0.7 - 1.4 V Output option: A
0.8 - 1.6 V Output option: B
Input voltage VIH 70 % VCC - - V OE/    terminal
VIL - - 30 % VCC V
Output disable time (OE) tstp_oe - - 100 ns Measured from the time OE
pin crosses 30 % VCC
Output disable time (ST) tstp_st - - 100 ns Measured from the time
pin crosses 30 % VCC
Output enable time (OE) tsta_oe - - 500 ns Measured from the time OE
pin crosses 70 % VCC
Output enable time (ST) tsta_st - - 10 ms Measured from the time
pin crosses 70 % VCC
Phase jitter
Offset frequency
   fo < 50 MHz: 12 kHz to 5 MHz
   fo ≥ 50 MHz: 12 kHz to 20 MHz 		tPJ - - 200 fs fo < 100 MHz
- - 90 fs 100 MHz ≤ fo ≤ 156 MHz
- - 70 fs 156 MHz < fo ≤ 212 MHz
- - 60 fs 212 MHz < fo ≤ 391 MHz
- - 50 fs fo > 391 MHz
Jitter tp-p - - 60 ps Peak to Peak Jitter
tc-c - - 60 ps Cycle to cycle jitter
(Peak to Peak)
PCIe jitter limits for CC
architecture 		- - - 0.1 ps For PCIe Gen5
- - 0.06 ps For PCIe Gen6
[ 6 ] Thermal resistance (For reference only)
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Junction temperature Tj - - +140 °C
Junction to case θjc - 114 - °C/W SG2016HHN
- 122 - °C/W SG2520HHN
Junction to ambient θja - 243 - °C/W SG2016HHN
- 155 - °C/W SG2520HHN
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

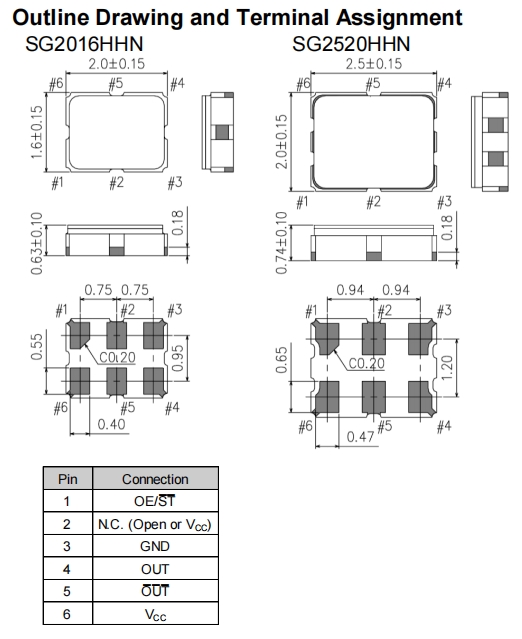

愛普生振晶振,SG2016HHN車規振蕩器,X1G0062310001,6G無線差分晶振    尺寸圖SG2016HHN SG2520HHN

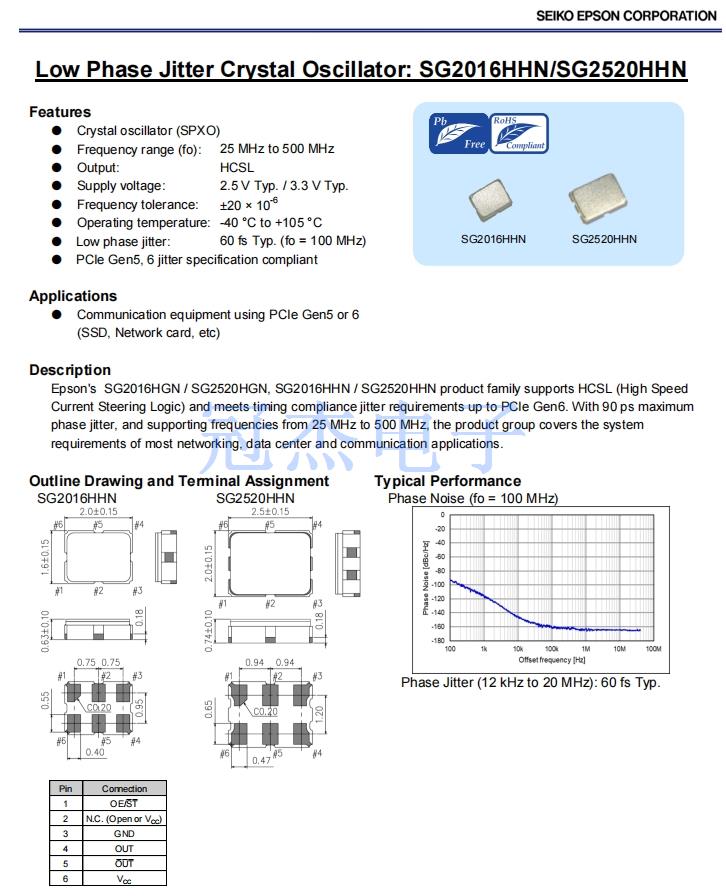

產品特性：

有源晶振(SPXO)

頻率范圍: 25MHz至500MHz

輸出:HCSL

供電電壓:2.5 V。/ 3.3 V類型

頻率公差:±20 × 10-6

工作溫度:-40℃~ +105℃

低相位抖動:60fs(fo = 100MHz)

PCIe gen5,6抖動規范兼容

SG2016HHN SG2520HHN 1

更多相關日本愛普生晶振型號

編碼 品牌 型號 頻率 尺寸 輸出方式 電源電壓 工作溫度
X1G0042410012 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410014 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410015 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410016 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410017 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410020 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410021 愛普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410023 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410024 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410025 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410026 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410027 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410028 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410029 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410030 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410031 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410033 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410034 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410035 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410036 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410039 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410040 愛普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410042 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410043 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410044 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410045 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410046 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410047 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410048 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410049 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410050 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410052 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410053 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410054 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410055 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410058 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410059 EPSON晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410061 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410062 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410063 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410064 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410065 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410066 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410067 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410068 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410069 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410071 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410072 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410073 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410074 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410079 愛普生晶振 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410080 愛普生晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410083 愛普生晶振 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410084 愛普生晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410087 愛普生晶振 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410088 愛普生晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410092 愛普生晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410100 愛普生晶振 SG3225VAN 133.333333 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410101 愛普生晶振 SG3225VAN 148.350000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410102 愛普生晶振 SG3225VAN 114.285000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410103 愛普生晶振 SG3225VAN 250.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410104 愛普生晶振 SG3225VAN 350.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410105 愛普生晶振 SG3225VAN 80.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410106 愛普生晶振 SG3225VAN 98.304000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410108 愛普生晶振 SG3225VAN 297.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042510001 愛普生晶振 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
