HSX211S水晶振動子|X2C026000BC1H-Z|HELE加高晶振|6G電信晶振

尺寸2.0*1.6mm,頻率26MHZ

HSX211S水晶振動子|X2C026000BC1H-Z|HELE加高晶振|6G電信晶振，尺寸2.0*1.6mm,頻率26MHZ，加高無源晶振，臺灣貼片晶振，SMD晶振，水晶振動子，石英晶體諧振器，貼片石英晶體，無源晶振，輕薄型晶振，2016mm小體積晶振，無鉛環保晶振，無線模塊專用晶振，藍牙音響晶振，智能手機專用晶振，小型設備晶振，智能家居晶振，網絡設備晶振，平板電腦晶振，低損耗晶振，低功耗晶振，高可靠晶振，高品質晶振，低成本晶振，高質量晶振，產品具有輕薄小低功耗的特點。

石英晶振產品適合適用范圍比較廣泛，常常用于無線模塊，藍牙音響，智能手機，小型設備，智能家居，網絡設備，平板電腦等領域。HSX211S水晶振動子|X2C026000BC1H-Z|HELE加高晶振|6G電信晶振.

訂購熱線：0755-27839151

HSX211S水晶振動子|X2C026000BC1H-Z|HELE加高晶振|6G電信晶振，尺寸2.0*1.6mm,頻率26MHZ，加高無源晶振，臺灣貼片晶振，SMD晶振，水晶振動子，石英晶體諧振器，貼片石英晶體，無源晶振，輕薄型晶振，2016mm小體積晶振，無鉛環保晶振，無線模塊專用晶振，藍牙音響晶振，智能手機專用晶振，小型設備晶振，智能家居晶振，網絡設備晶振，平板電腦晶振，低損耗晶振，低功耗晶振，高可靠晶振，高品質晶振，低成本晶振，高質量晶振，產品具有輕薄小低功耗的特點。

石英晶振產品適合適用范圍比較廣泛，常常用于無線模塊，藍牙音響，智能手機，小型設備，智能家居，網絡設備，平板電腦等領域。HSX211S水晶振動子|X2C026000BC1H-Z|HELE加高晶振|6G電信晶振.

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

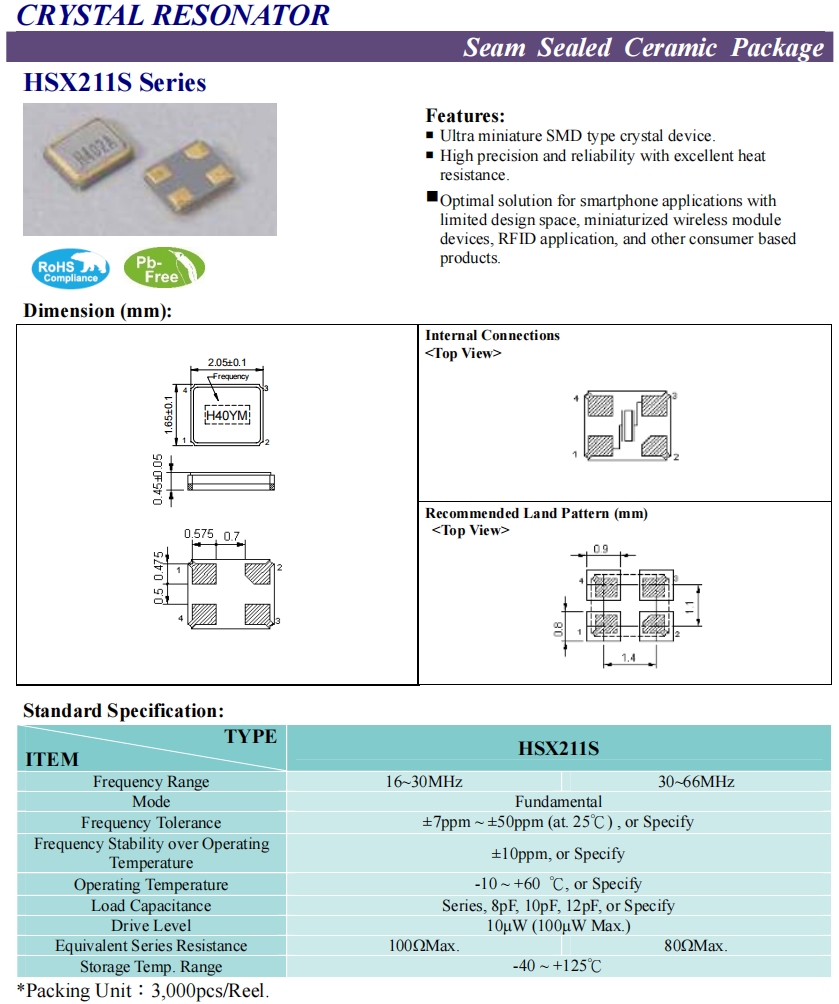

HSX211S水晶振動子|X2C026000BC1H-Z|HELE加高晶振|6G電信晶振      參數表

TYPE

ITEM


Frequency Range

16~30MHz

30~66MHz

Mode



Fundamental



Frequency Tolerance

±7ppm ~ ±50ppm (at. 25℃) , or Specify



Frequency Stability over Operating Temperature

±10ppm, or Specify

Operating Temperature



-10 ~ +60  ℃, or Specify



Load Capacitance



Series, 8pF, 10pF, 12pF, or Specify



Drive Level




Equivalent Series Resistance

100ΩMax.

80ΩMax.

Storage Temp. Range



-40 ~ +125℃

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

HSX211S水晶振動子|X2C026000BC1H-Z|HELE加高晶振|6G電信晶振    尺寸圖

HSX211SK 2016

產品特性：

超小型SMD晶振器件。

高精度、高可靠性和優異的熱性能

智能手機應用程序的最佳解決方案

有限的設計空間，小型化的無線模塊設備、

RFID應用程序和其他基于消費者的產品。

HSX211S 1

更多相關HELE加高晶振型號

編碼 Series 臺產晶振 描述 頻率 頻率穩定性
X2B026000M81H-HS HSX221SA HELE加高晶振 HSX221SA/26MHZ/8PF/7PPM/15PPM/-4 26.000MHZ ±15ppm
X2B016000BA1H-U HSX221SA HELE加高晶振 HSX221SA/16MHZ/10PF/10PPM/10PPM/ 16.000MHZ ±10ppm
X2B012000BC1H-U HSX221SA HELE加高晶振 HSX221SA/12MHZ/12PF/10PPM/20PPM/ 12.000MHZ ±20ppm
X2B040000BC1H-DHZ HSX221SA HELE加高晶振 HSX221SA/40MHZ/12PF/10PPM/10PPM/ 40.000MHZ ±10ppm
X2C025000DZ1H-U HSX211S HELE加高晶振 HSX211S/25MHZ/6PF/20PPM/20PPM@-3 25.000MHZ ±20ppm
X2C032000BA1H-HZ HSX211S HELE加高晶振 HSX211S/32MHZ/10PF/10PPM/15PPM@- 32.000MHZ ±15ppm
X2C024000DZ1H-HU HSX211S HELE加高晶振 HSX211S/24MHZ/6PF/20PPM/20PPM@-3 24.000MHZ ±20ppm
X2C016000B81H-R HSX211S HELE加高晶振 HSX211S/16MHZ/8PF/10PPM/10PPM@-2 16.000MHZ ±10ppm
X2C026000BC1H-Z HSX211S HELE加高晶振 HSX211S/26MHZ/12PF/10PPM/10PPM@- 26.000MHZ ±10ppm
X2C048000L71HH-CEHZ HSX211S HELE加高晶振 HSX211S/48MHZ/11.1PF/8PPM/14PPM/ 48.000MHZ ±14ppm
X2B012000DC1H-X HSX221SA HELE加高晶振 SMD Crystal Resonators 12MHz ±20ppm SMD-2520_4P RoHS 12.000MHZ ±20ppm
X2B016000B91H-HU HSX221SA HELE加高晶振 SMD Crystal Resonators 16MHz ±10ppm SMD-2520_4P RoHS 16.000MHZ ±10ppm
X2B027000BC1H-HU HSX221SA HELE加高晶振 SMD Crystal Resonators 27MHz ±10ppm SMD-2520_4P RoHS 27.000MHZ ±10ppm
X2B032000BC1H-HZ HSX221SA HELE加高晶振 SMD Crystal Resonators SMD-2520_4P RoHS 32.000MHZ -
X2C048000L71HA-CEHZ HSX211S-AU HELE加高晶振 SMD Crystal Resonators 48MHz ±8ppm SMD-2016_4P RoHS 48.000MHZ ±8ppm
X2B024000BC1HA-V HSX221SA HELE加高晶振 SMD Crystal Resonators SMD_2520-4P RoHS 24.000MHZ -
X2B026000B91H-HZ HSX221SA HELE加高晶振 SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS 26.000MHZ ±10ppm
X2B026000B71HZ-HPR HSX221SA HELE加高晶振 SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS 26.000MHZ ±10ppm
X2C026000B91H-V HSX211S HELE加高晶振 SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS 26.000MHZ ±10ppm
X2B026000B71HZ HSX221SA HELE加高晶振 SMD Crystal Resonators 26MHz ±7ppm SMD-2520_4P RoHS 26.000MHZ ±7ppm
X2B040000BF1H-HZ HSX221SA HELE加高晶振 SMD Crystal Resonators 40MHz ±10ppm SMD-2520_4P RoHS 40.000MHZ ±10ppm
X2B024000BCIH-HV HSX221SA HELE加高晶振 SMD Crystal Resonators 24MHz ±10ppm SMD-2520_4P RoHS 24.000MHZ ±10ppm
X2C024000BA1H HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD-2016 RoHS 24.000MHZ ±10ppm
X2C024000B71H-V HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 24.000MHZ ±10ppm
X2B050000BC1H-V HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 50.000MHZ 10PPM
X2C024000FA1H-X HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 24.000MHZ 30PPM
X2C016000B81H-HPU HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD-2016 RoHS 16.000MHZ 10PPM
X2C024000B91H-HZ HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 24.000MHZ 10PPM
X2C037400BG1H-U HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD-2016 RoHS 37.400MHZ 10PPM
X2B040000BF1H-HT HSX221SA HELE加高晶振 SMD Crystal Resonators SMD-2520 RoHS 40.000MHZ ±15ppm
X2B030000BA1H-U HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 30.000MHZ 10PPM
X2B026000B91H-HR HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 26.000MHZ 10PPM
X2B038400BA1H-U HSX221SA HELE加高晶振 SMD Crystal Resonators SMD-2520 RoHS 38.400MHZ 10PPM
X2B040000B91H-U HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 40.000MHZ 10PPM
X2B032000C81H-HU HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 32.000MHZ ±15ppm
X2B012000B91H-U HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 12.000MHZ 10PPM
X2C027120FA1H-HV HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 27.120MHZ ±30ppm
X2B030000BA1H-HW HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 30.000MHZ 10PPM
X2B026000B91H-HV HSX221SA HELE加高晶振 SMD Crystal Resonators SMD-2520 RoHS 26.000MHZ 10PPM
X2C040000B91HA-Z HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD-2016 RoHS 40.000MHZ 10PPM
X2B026000BC1H-Z HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 26.000MHZ 10PPM
X2B016000BC1H-HV HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 16.000MHZ 10PPM
X2C016000B91H-R HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 16.000MHZ 10PPM
X2B019200BZ1H-CHZ HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 19.200MHZ 10PPM
X2C032000BA1HA-U HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 32.000MHZ 10PPM
X2B026000B91H-U HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 26.000MHZ 10PPM
X2B026000L91H-S HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 26.000MHZ ±8ppm
X2C048000L71H-CEHZ HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 48.000MHZ ±8ppm
X2B030000FA1H-X HSX221SA HELE加高晶振 SMD Crystal Resonators SMD-2520 RoHS 30.000MHZ ±30ppm
X2C032000BC1H-R HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 32.000MHZ 10PPM
X2B024000FK1H-V HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 24.000MHZ ±30ppm
X2B026000B81H-CHZ HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 26.000MHZ 10PPM
X2C038400BA1H-HZ HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD-2016 RoHS 38.400MHZ 10PPM
X2B02863ADC1H-W HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 28.63636MHZ ±20ppm
X2B032000D81H-U HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 32.000MHZ ±20ppm
X2B025000BI1H-U HSX221SA HELE加高晶振 SMD Crystal Resonators SMD,2.5x2.0mm RoHS 25.000MHZ 10PPM
X2C032000B81H-HS HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 32.000MHZ ±10ppm
X2C026000B71H-HZ HSX211S-AU HELE加高晶振 SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS 26.000MHZ ±10ppm
X2C048000BA1H-HZ HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 48.000MHZ ±10ppm
X2CO48000B71H-CEHZ HSX211S-AU HELE加高晶振 48.000MHZ
X2CO48000R71HA-CEHZ HSX211S-AU 加高晶振 48.000MHZ
X2CO40000BD1H-HZ HSX211S-AU HELE加高晶振 40.000MHZ
X2BO32000BC1H-HZ HSX221SA HELE加高晶振 32.000MHZ
X2CO27120FC1H-HX HSX211S-AU HELE加高晶振 27.120MHZ
X2BO27000FC1H-HX HSX221SA HELE加高晶振 27.000MHZ
X2BO19200FC1H-HX HSX221SA HELE加高晶振 19.200MHZ
X2C016000BC1H-Z HSX211S HELE加高晶振 16.000MHZ ±10PPM
X2C025000BC1H-U HSX211S HELE加高晶振 25.000MHZ ±10ppm
X2C037400BG1HA-U HSX211S HELE加高晶振 37.4.000MHZ ±10ppm

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振
