臺灣加高晶振,X3GO27000BA1H-HU,HSX321G低功耗晶振,6G物聯網晶振
臺灣加高晶振,X3GO27000BA1H-HU,HSX321G低功耗晶振,6G物聯網晶振，尺寸3.2*2.5mm,頻率27MHZ，臺灣無源晶振，陶瓷晶振，四腳無源晶振，水晶振動子，SMD晶體諧振器，無源晶振，無源貼片晶振，四腳無源晶體，輕薄型晶體，環保晶振，3225mm貼片晶振，無線通訊晶振，智能家居晶振，平板電腦專用晶振，小型設備專用晶振，網絡設備晶振，消費電子專用晶振，儀器設備晶振，數字音頻晶振，具有良好的耐壓性能以及廣泛的選擇空間.
陶瓷晶振外觀本身使用陶瓷面封裝,充分的密封性能,可確保其高可靠性,采用編帶包裝,外包裝采用朔膠盤,可在自動貼片機上對應自動貼裝等優勢.臺灣加高晶振,X3GO27000BA1H-HU,HSX321G低功耗晶振,6G物聯網晶振.
臺灣加高晶振,X3GO27000BA1H-HU,HSX321G低功耗晶振,6G物聯網晶振，尺寸3.2*2.5mm,頻率27MHZ，臺灣無源晶振，陶瓷晶振，四腳無源晶振，水晶振動子，SMD晶體諧振器，無源晶振，無源貼片晶振，四腳無源晶體，輕薄型晶體，環保晶振，3225mm貼片晶振，無線通訊晶振，智能家居晶振，平板電腦專用晶振，小型設備專用晶振，網絡設備晶振，消費電子專用晶振，儀器設備晶振，數字音頻晶振，具有良好的耐壓性能以及廣泛的選擇空間.
陶瓷晶振外觀本身使用陶瓷面封裝,充分的密封性能,可確保其高可靠性,采用編帶包裝,外包裝采用朔膠盤,可在自動貼片機上對應自動貼裝等優勢.臺灣加高晶振,X3GO27000BA1H-HU,HSX321G低功耗晶振,6G物聯網晶振.

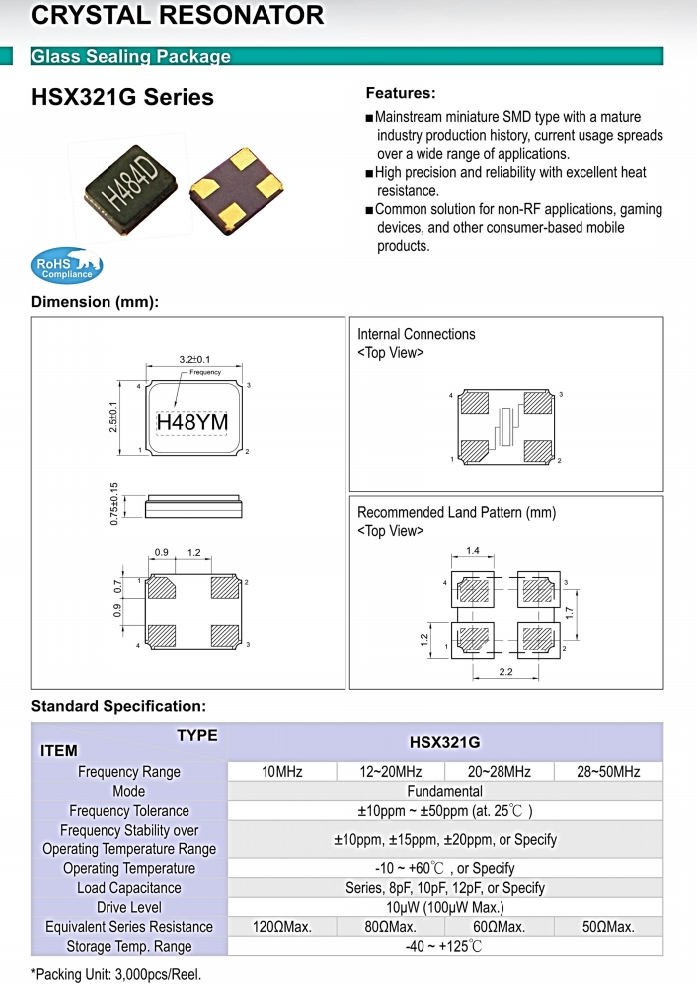

臺灣加高晶振,X3GO27000BA1H-HU,HSX321G低功耗晶振,6G物聯網晶振 參數表
ITEM TYPE
parameter
Frequency Range
27MHZ
52MHz~20MHZ
20~28MHz
28~50MHz
Mode
Fundamental
Frequency Tolerance (at. to 25 C)
±10ppm~±50ppm( at.25 C)
Frequency Stability (Temp.)
±12ppm,±15ppm,±20ppm,or Specify
Operating Temp. Range
-10~+60 C,or Specify
Load Capacitance
series, 8pF,10pF,12pF,or Specify
Drive Level
10μW (100μW Max.)
Equivalent Series Resistance
120Ω Max.
80Ω Max.
60Ω Max.
50Ω Max.
Storage Temp. Range
-40~+125 C
Thermistor Resistance(25 C)
100KΩ
Thermistor B-constant(25~50 C)
4250K

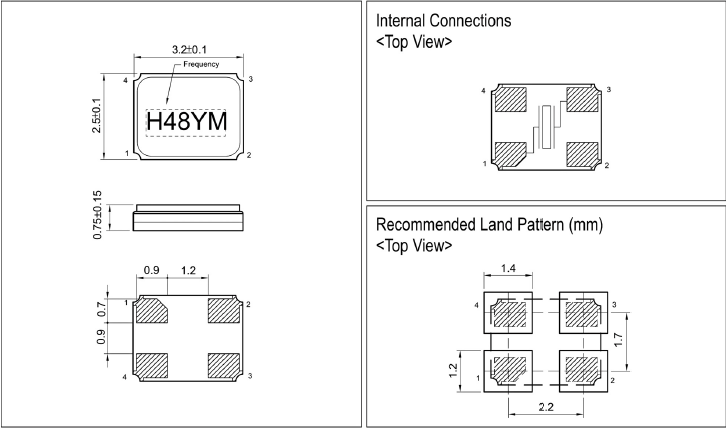

臺灣加高晶振,X3GO27000BA1H-HU,HSX321G低功耗晶振,6G物聯網晶振 尺寸圖
無源晶振產品特性：
小尺寸
低功耗，高可靠性能
優異的老化特性
符合RoHS標準且無鉛
更多相關HELE加高晶振型號
編碼
Series
品牌
描述
頻率
頻率穩定性
X2B026000M81H-HS
HSX221SA
HELE加高晶振
HSX221SA/26MHZ/8PF/7PPM/15PPM/-4
26.000MHZ
±15ppm
X2B016000BA1H-U
HSX221SA
HELE加高晶振
HSX221SA/16MHZ/10PF/10PPM/10PPM/
16.000MHZ
±10ppm
X2B012000BC1H-U
HSX221SA
HELE加高晶振
HSX221SA/12MHZ/12PF/10PPM/20PPM/
12.000MHZ
±20ppm
X2B040000BC1H-DHZ
HSX221SA
HELE加高晶振
HSX221SA/40MHZ/12PF/10PPM/10PPM/
40.000MHZ
±10ppm
X2B012000DC1H-X
HSX221SA
HELE加高晶振
SMD Crystal Resonators 12MHz ±20ppm SMD-2520_4P RoHS
12.000MHZ
±20ppm
X2B016000B91H-HU
HSX221SA
HELE加高晶振
SMD Crystal Resonators 16MHz ±10ppm SMD-2520_4P RoHS
16.000MHZ
±10ppm
X2B027000BC1H-HU
HSX221SA
HELE加高晶振
SMD Crystal Resonators 27MHz ±10ppm SMD-2520_4P RoHS
27.000MHZ
±10ppm
X2B032000BC1H-HZ
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD-2520_4P RoHS
32.000MHZ
-
X3G012000DI1H-HX
HSX321G
HELE加高晶振
SMD Crystal Resonators SMD_3225-4P RoHS
12.000MHZ
-
X2C048000L71HA-CEHZ
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators 48MHz ±8ppm SMD-2016_4P RoHS
48.000MHZ
±8ppm
X2B024000BC1HA-V
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD_2520-4P RoHS
24.000MHZ
-
X2B026000B91H-HZ
HSX221SA
HELE加高晶振
SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS
26.000MHZ
±10ppm
X2B026000B71HZ-HPR
HSX221SA
HELE加高晶振
SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS
26.000MHZ
±10ppm
X2B026000B71HZ
HSX221SA
HELE加高晶振
SMD Crystal Resonators 26MHz ±7ppm SMD-2520_4P RoHS
26.000MHZ
±7ppm
X2B040000BF1H-HZ
HSX221SA
HELE加高晶振
SMD Crystal Resonators 40MHz ±10ppm SMD-2520_4P RoHS
40.000MHZ
±10ppm
X5H008000FC1H-X
HSX530G
HELE加高晶振
SMD Crystal Resonators 8MHz ±30ppm SMD-5032_2P RoHS
8.000MHZ
±30ppm
X5H027000DA1H-W
HSX530G
HELE加高晶振
SMD Crystal Resonators 27MHz ±20ppm SMD-5032_2P RoHS
27.000MHZ
±20ppm
X5H01431AFK1H-X
HSX530G
HELE加高晶振
SMD Crystal Resonators SMD_5032-2P RoHS
14.31818MHZ
-
X5H025000FK1H-X
HSX530G
HELE加高晶振
SMD Crystal Resonators SMD_5032-2P RoHS
25.000MHZ
-
X5H008000FF1H
HSX530G
HELE加高晶振
SMD Crystal Resonators SMD-5032-2P RoHS
8.000MHZ
-
X2B024000BCIH-HV
HSX221SA
HELE加高晶振
SMD Crystal Resonators 24MHz ±10ppm SMD-2520_4P RoHS
24.000MHZ
±10ppm
X5H012288FI1H
HSX530G
HELE加高晶振
SMD Crystal Resonators 12.288MHz ±30ppm SMD-5032_2P RoHS
12.288MHZ
±30ppm
X5H008000IK1H-H
HSX530G
HELE加高晶振
SMD Crystal Resonators SMD_5032-2P RoHS
8.000MHZ
-
X2C024000BA1H
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD-2016 RoHS
24.000MHZ
±10ppm
X2C024000B71H-V
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD,2.0x1.6mm RoHS
24.000MHZ
±10ppm
X2B050000BC1H-V
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
50.000MHZ
10PPM
X2C024000FA1H-X
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD,2.0x1.6mm RoHS
24.000MHZ
30PPM
X2C016000B81H-HPU
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD-2016 RoHS
16.000MHZ
10PPM
X2C024000B91H-HZ
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD,2.0x1.6mm RoHS
24.000MHZ
10PPM
X2C037400BG1H-U
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD-2016 RoHS
37.400MHZ
10PPM
X2B040000BF1H-HT
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD-2520 RoHS
40.000MHZ
±15ppm
X2B030000BA1H-U
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
30.000MHZ
10PPM
X2B026000B91H-HR
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
26.000MHZ
10PPM
X2B038400BA1H-U
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD-2520 RoHS
38.400MHZ
10PPM
X2B040000B91H-U
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
40.000MHZ
10PPM
X2B032000C81H-HU
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
32.000MHZ
±15ppm
X2B012000B91H-U
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
12.000MHZ
10PPM
X2C027120FA1H-HV
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD,2.0x1.6mm RoHS
27.120MHZ
±30ppm
X2B030000BA1H-HW
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
30.000MHZ
10PPM
X2B026000B91H-HV
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD-2520 RoHS
26.000MHZ
10PPM
X2C040000B91HA-Z
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD-2016 RoHS
40.000MHZ
10PPM
X2B026000BC1H-Z
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
26.000MHZ
10PPM
X2B016000BC1H-HV
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
16.000MHZ
10PPM
X2C016000B91H-R
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD,2.0x1.6mm RoHS
16.000MHZ
10PPM
X2B019200BZ1H-CHZ
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
19.200MHZ
10PPM
X2C032000BA1HA-U
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD,2.0x1.6mm RoHS
32.000MHZ
10PPM
X2B026000B91H-U
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
26.000MHZ
10PPM
X2B026000L91H-S
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
26.000MHZ
±8ppm
X2C048000L71H-CEHZ
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD,2.0x1.6mm RoHS
48.000MHZ
±8ppm
X2B030000FA1H-X
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD-2520 RoHS
30.000MHZ
±30ppm
X2C032000BC1H-R
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD,2.0x1.6mm RoHS
32.000MHZ
10PPM
X2B024000FK1H-V
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
24.000MHZ
±30ppm
X2B026000B81H-CHZ
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
26.000MHZ
10PPM
X2C038400BA1H-HZ
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD-2016 RoHS
38.400MHZ
10PPM
X2B02863ADC1H-W
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
28.63636MHZ
±20ppm
X2B032000D81H-U
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
32.000MHZ
±20ppm
X2B025000BI1H-U
HSX221SA
HELE加高晶振
SMD Crystal Resonators SMD,2.5x2.0mm RoHS
25.000MHZ
10PPM
X2C032000B81H-HS
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD,2.0x1.6mm RoHS
32.000MHZ
±10ppm
X2C026000B71H-HZ
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS
26.000MHZ
±10ppm
X2C048000BA1H-HZ
HSX211S-AU
HELE加高晶振
SMD Crystal Resonators SMD,2.0x1.6mm RoHS
48.000MHZ
±10ppm
X2CO48000B71H-CEHZ
HSX211S-AU
HELE加高晶振
48.000MHZ
X2CO48000R71HA-CEHZ
HSX211S-AU
HELE加高晶振
48.000MHZ
X3GO48000F81H
HSX321G
HELE加高晶振
48.000MHZ
X2CO40000BD1H-HZ
HSX211S-AU
HELE加高晶振
40.000MHZ
X2BO32000BC1H-HZ
HSX221SA
HELE加高晶振
32.000MHZ
X2CO27120FC1H-HX
HSX211S-AU
HELE加高晶振
27.120MHZ
X3GO27000BA1H-HU
HSX321G
HELE加高晶振
3225晶體諧振器
27.000MHZ
X2BO27000FC1H-HX
HSX221SA
HELE加高晶振
27.000MHZ
XSHO25000FC1H-H
HSX530G
HELE加高晶振
25.000MHZ
X2BO19200FC1H-HX
HSX221SA
HELE加高晶振
19.200MHZ
XSHO12000FG1H-X
HSX530G
HELE加高晶振
12.000MHZ
X5H024576FI1HA-X
HSX530G
HELE加高晶振
24.576MHZ
X3G026000IC1H
HSX321G
HELE加高晶振
26.000MHZ
12PF
X5H048000FQ1H-X
HSX530G
HELE加高晶振
48.000MHZ
