QTX733A24.5760B15M,QTX7通訊模塊晶振,夸克7050晶體振蕩器
QTX733A24.5760B15M,QTX7通訊模塊晶振,夸克7050晶體振蕩器，尺寸7.0*5.0mm,頻率24.576MHZ，Quarztechnik有源晶振，德國進口晶振，有源晶體振蕩器，石英有源晶振，石英晶體振蕩器，時鐘振蕩器，7050mm有源晶振，貼片有源振蕩器，低電壓有源晶振，低功耗有源晶振，低抖動有源晶振，低相位有源晶振，高性能有源晶振，高質量有源晶振，北斗導航有源晶振，通訊模塊有源晶振，智能家居有源晶振，無線路由器有源晶振，人工智能有源晶振，測試測量專用有源晶振，儀器設備有源晶振，網絡設備有源晶振，具有低抖動低電壓的特點。
QX7 SMD振蕩器由TTL/HCMOS兼容的混合電路和微型石英晶體封裝在低剖面、行業標準的7x5mm陶瓷包裹，適合用于北斗導航，通訊模塊，智能家居，無線路由器，人工智能，測試測量，儀器設備，網絡設備等領域。QTX733A24.5760B15M,QTX7通訊模塊晶振,夸克7050晶體振蕩器.
QTX733A24.5760B15M,QTX7通訊模塊晶振,夸克7050晶體振蕩器，尺寸7.0*5.0mm,頻率24.576MHZ，Quarztechnik有源晶振，德國進口晶振，有源晶體振蕩器，石英有源晶振，石英晶體振蕩器，時鐘振蕩器，7050mm有源晶振，貼片有源振蕩器，低電壓有源晶振，低功耗有源晶振，低抖動有源晶振，低相位有源晶振，高性能有源晶振，高質量有源晶振，北斗導航有源晶振，通訊模塊有源晶振，智能家居有源晶振，無線路由器有源晶振，人工智能有源晶振，測試測量專用有源晶振，儀器設備有源晶振，網絡設備有源晶振，具有低抖動低電壓的特點。
QX7 SMD振蕩器由TTL/HCMOS兼容的混合電路和微型石英晶體封裝在低剖面、行業標準的7x5mm陶瓷包裹，適合用于北斗導航，通訊模塊，智能家居，無線路由器，人工智能，測試測量，儀器設備，網絡設備等領域。QTX733A24.5760B15M,QTX7通訊模塊晶振,夸克7050晶體振蕩器.

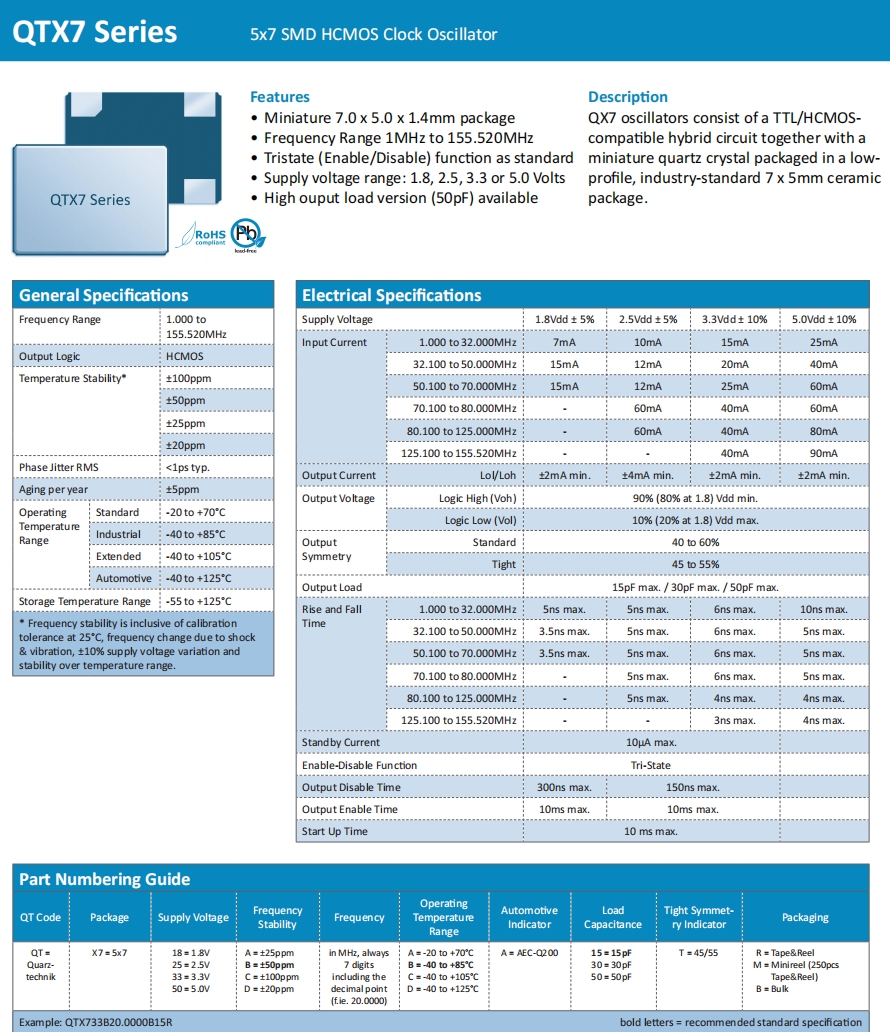

QTX733A24.5760B15M,QTX7通訊模塊晶振,夸克7050晶體振蕩器 參數表
| General Specifications | ||||||||||
| Frequency Range | 24.576MHz | |||||||||
| Output Logic | HCMOS | |||||||||
| Temperature Stability* | ±100ppm | |||||||||
| ±50ppm | ||||||||||
| ±25ppm | ||||||||||
| ±20ppm | ||||||||||
| Phase Jitter RMS | <1ps typ. | |||||||||
| Aging per year | ±5ppm | |||||||||
|
Operating Temperature Range |
Standard | -20 to +70°C | ||||||||
| Industrial | -40 to +85°C | |||||||||
| Extended | -40 to +105°C | |||||||||
| Automotive | -40 to +125°C | |||||||||
| Storage Temperature Range | -55 to +125°C | |||||||||
| Electrical Specifications | ||||||||||||||||||||||||
| Supply Voltage | 1.8Vdd ± 5% | 2.5Vdd ± 5% | 3.3Vdd ± 10% | 5.0Vdd ± 10% | ||||||||||||||||||||
| Input Current | 1.000 to 32.000MHz | 7mA | 10mA | 15mA | 25mA | |||||||||||||||||||
| 32.100 to 50.000MHz | 15mA | 12mA | 20mA | 40mA | ||||||||||||||||||||
| 50.100 to 70.000MHz | 15mA | 12mA | 25mA | 60mA | ||||||||||||||||||||
| 70.100 to 80.000MHz | - | 60mA | 40mA | 60mA | ||||||||||||||||||||
| 80.100 to 125.000MHz | - | 60mA | 40mA | 80mA | ||||||||||||||||||||
| 125.100 to 155.520MHz | - | - | 40mA | 90mA | ||||||||||||||||||||
| Output Current | Lol/Loh | ±2mA min. | ±4mA min. | ±2mA min. | ±2mA min. | |||||||||||||||||||
| Output Voltage | Logic High (Voh) | 90% (80% at 1.8) Vddmin. | ||||||||||||||||||||||
| Logic Low (Vol) | 10% (20% at 1.8) Vdd max. | |||||||||||||||||||||||
|
Output Symmetry |
Standard | 40 to 60% | ||||||||||||||||||||||
| Tight | 45 to 55% | |||||||||||||||||||||||
| Output Load | 15pF max. / 30pF max. / 50pF max. | |||||||||||||||||||||||
|
Rise and Fall Time |
1.000 to 32.000MHz | 5ns max. | 5ns max. | 6ns max. | 10ns max. | |||||||||||||||||||
| 32.100 to 50.000MHz | 3.5ns max. | 5ns max. | 6ns max. | 5ns max. | ||||||||||||||||||||
| 50.100 to 70.000MHz | 3.5ns max. | 5ns max. | 6ns max. | 5ns max. | ||||||||||||||||||||
| 70.100 to 80.000MHz | - | 5ns max. | 6ns max. | 5ns max. | ||||||||||||||||||||
| 80.100 to 125.000MHz | - | 5ns max. | 4ns max. | 4ns max. | ||||||||||||||||||||
| 125.100 to 155.520MHz | - | - | 3ns max. | 4ns max. | ||||||||||||||||||||
| Standby Current | 10μA max. | |||||||||||||||||||||||
| Enable-Disable Function | Tri-State | |||||||||||||||||||||||
| Output Disable Time | 300ns max. | 150ns max. | ||||||||||||||||||||||
| Output Enable Time | 10ms max. | 10ms max. | ||||||||||||||||||||||
| Start Up Time | 10 ms max. | |||||||||||||||||||||||

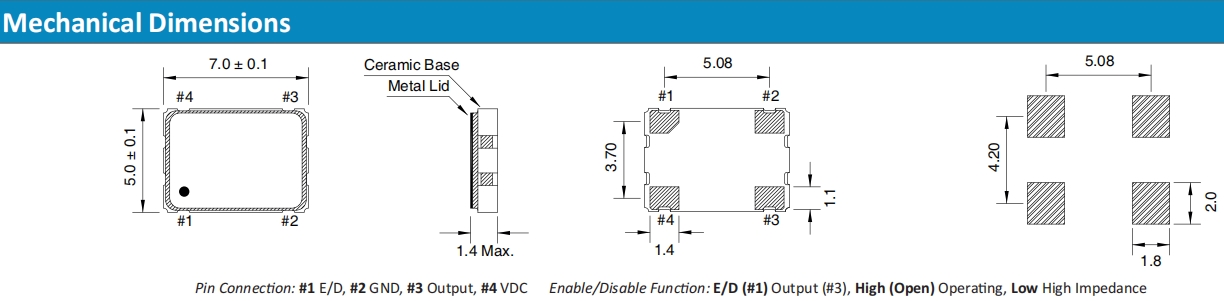

QTX733A24.5760B15M,QTX7通訊模塊晶振,夸克7050晶體振蕩器 尺寸圖
QTX733A24.5760B15M,QTX7通訊模塊晶振,夸克7050晶體振蕩器
有源晶振產品特性：
小型7.0x5.0x1.4毫米封裝
頻率范圍1MHz至155.520MHz
標準的三態（啟用/禁用）功能
電源電壓范圍：1.8、2.5、3.3或5.0伏
高輸出負載版本（50pF）可用
| Frequency | Logic | Voltage | Temp. Range | Stability | Load | Symmetry | Standby | Quarztechnik Crystal編碼 |
| 3.6864 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A3.68640B15M |
| 4.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A4.00000B15M |
| 7.3728 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A7.37280B15M |
| 8.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A8.00000B15M |
| 10.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A10.0000B15M |
| 11.0592 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A11.0592B15M |
| 12.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A12.0000B15M |
| 14.31818 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A14.31818B15M |
| 14.7456 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A14.7456B15M |
| 16.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A16.0000B15M |
| 16.384 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A16.3840B15M |
| 20.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A20.0000B15M |
| 24.576 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A24.5760B15M |
| 25.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A25.0000B15M |
| 27.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A27.0000B15M |
| 30.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A30.0000B15M |
| 32.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX733A32.0000B15M |
| 3.6864 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A3.68640B15M |
| 4.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A4.00000B15M |
| 7.3728 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A7.37280B15M |
| 8.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A8.00000B15M |
| 10.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A10.0000B15M |
| 11.0592 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A11.0592B15M |
| 12.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A12.0000B15M |
| 16.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A16.0000B15M |
| 16.384 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A16.3840B15M |
| 20.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A20.0000B15M |
| 24.576 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A24.5760B15M |
| 25.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A25.0000B15M |
| 27.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A27.0000B15M |
| 30.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A30.0000B15M |
| 32.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 40:60 | Tri-state | QTX533A32.0000B15M |
| 3.6864 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A3.68640B15TM |
| 4.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A4.00000B15TM |
| 7.3728 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A7.37280B15TM |
| 8.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A8.00000B15TM |
| 10.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A10.0000B15TM |
| 11.0592 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A11.0592B15TM |
| 12.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A12.0000B15TM |
| 14.7456 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A14.7456B15TM |
| 16.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A16.0000B15TM |
| 16.384 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A16.3840B15TM |
| 20.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A20.0000B15TM |
| 24.576 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A24.5760B15TM |
| 25.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A25.0000B15TM |
| 27.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A27.0000B15TM |
| 30.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm | 15pF | 45:55:00 | Tri-state | QTX333A30.0000B15TM |
