6G通信差分晶振,日本電波有源振蕩器,NP5032SA-125MHZ-NSC5400C

6G通信差分晶振,日本電波有源振蕩器,NP5032SA-125MHZ-NSC5400C6G通信差分晶振,日本電波有源振蕩器,NP5032SA-125MHZ-NSC5400C

產品簡介


6G通信差分晶振,日本電波有源振蕩器,NP5032SA-125MHZ-NSC5400C，尺寸5.0x3.2mm,頻率125MHZ，輸出邏輯LVPECL，差分輸出信號LV-PECL，LV-PECL輸出晶振，125MHZ差分晶振，OSC差分晶振，有源差分振蕩器，低電壓差分振蕩器，低抖動差分晶振，低耗能差分晶振，高頻差分晶振，智能家居差分晶振，光通信差分晶振，儀器設備差分晶振，6G光模塊差分晶振，無線網絡差分振蕩器，網絡設備專用差分晶振，LV-PECL貼片晶振，LV-PECL石英晶振，具有低抖動低電壓低相位的特點。

有源晶振產品很適合用于SONET，SDH，與千兆以太網相關的設備。以及6G應用，儀器儀表，智能家居等領域.6G通信差分晶振,日本電波有源振蕩器,NP5032SA-125MHZ-NSC5400C.

產品詳情

6G通信差分晶振,日本電波有源振蕩器,NP5032SA-125MHZ-NSC5400C，尺寸5.0x3.2mm,頻率125MHZ，輸出邏輯LVPECL，差分輸出信號LV-PECL，LV-PECL輸出晶振，125MHZ差分晶振，OSC差分晶振，有源差分振蕩器，低電壓差分振蕩器，低抖動差分晶振，低耗能差分晶振，高頻差分晶振，智能家居差分晶振，光通信差分晶振，儀器設備差分晶振，6G光模塊差分晶振，無線網絡差分振蕩器，網絡設備專用差分晶振，LV-PECL貼片晶振，LV-PECL石英晶振，具有低抖動低電壓低相位的特點。

有源晶振產品很適合用于SONET，SDH，與千兆以太網相關的設備。以及6G應用，儀器儀表，智能家居等領域.6G通信差分晶振,日本電波有源振蕩器,NP5032SA-125MHZ-NSC5400C.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

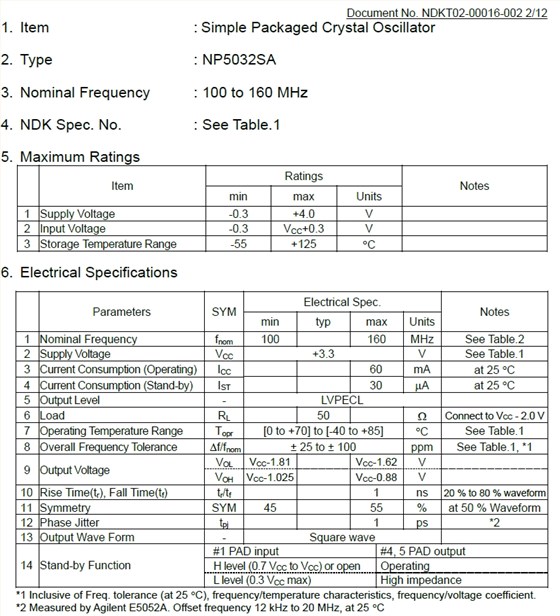

6G通信差分晶振,日本電波有源振蕩器,NP5032SA-125MHZ-NSC5400C參數表

Item Ratings Notes
min max Units
1 Supply Voltage -0.3 +4.0 V
2 Input Voltage -0.3 VCC+0.3 V
3 Storage Temperature Range -55 +125 。C
Parameters SYM Electrical Spec. Notes
min typ max Units
1 Nominal Frequency fnom
125
MHz See Table.2
2 Supply Voltage VCC +3.3 V See Table.1
3 Current Consumption (Operating) ICC 60 mA at 25。C
4 Current Consumption (Stand-by) IST 30 μA at 25。C
5 Output Level - LVPECL
6 Load RL 50 Ω Connect to VCC- 2.0 V
7 Operating Temperature Range Topr [0 to +70] to [-40 to +85] 。C See Table.1
8 Overall Frequency Tolerance Δf/fnom ± 25 to ± 100 ppm See Table.1, *1
9 Output Voltage VOL VCC- 1.81 VCC- 1.62 V
VOH VCC- 1.025 VCC-0.88 V
10 Rise Time(tr), Fall Time(tf) tr/tf 1 ns 20 % to 80 % waveform
11 Symmetry SYM 45 55 % at 50 % Waveform
12 Phase Jitter tpj 1 ps *2
13 Output Wave Form - Square wave
14 Stand-by Function #1 PAD input #4, 5 PAD output
H level (0.7 VCCto VCC) or open Operating
L level (0.3 VCCmax) High impedance
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

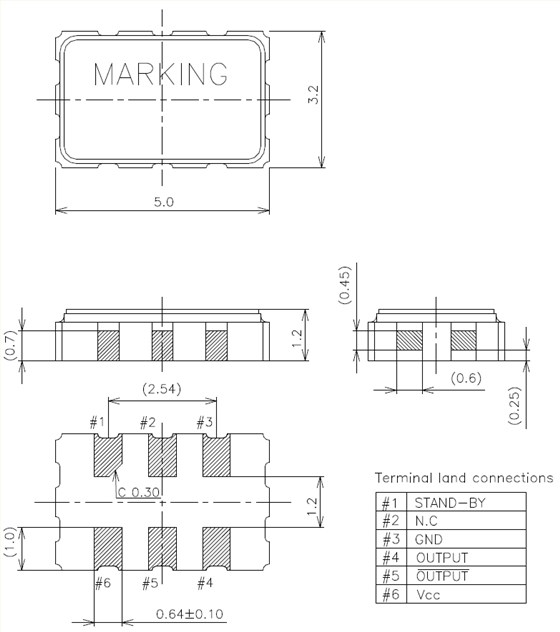

6G通信差分晶振,日本電波有源振蕩器,NP5032SA-125MHZ-NSC5400C尺寸圖NP5032SA

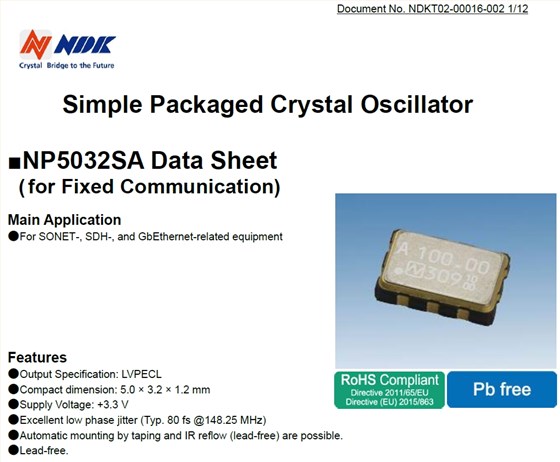

產品特性：

LVPECL差分晶振輸出SPXO

小巧:5.0x 3.2 x 1.2毫米

電源電壓:+3.3V

低相位抖動:典型。148.5MHz時80 fs

通過纏繞自動安裝和IR回流(無鉛)是可能的。

無鉛

NP5032SA 1

NP5032SA 2

更多相關日本NDK晶振型號

Model Nominal frequency[MHz] Specification number Manufacturer Package size(LxW)[mm] Output specification Operating temperature rang[℃] Storage temperature range[℃] Supply voltage[V]
NP3225SB 200MHZ NSC5236B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SB 50MHZ NSC5344A NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +2.5±0.125
NP3225SB 100MHZ NSC5344A NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +2.5±0.125
NP3225SB 125MHZ NSC5344A NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +2.5±0.125
NP3225SB 135MHZ NSC5344A NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +2.5±0.125
NP3225SB 148MHZ NSC5344A NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +2.5±0.125
NP3225SB 156.25MHZ NSC5344A NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +2.5±0.125
NP3225SB 200MHZ NSC5238A NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +2.5±0.125
NP3225SB 50MHZ NSC5344B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SB 100MHZ NSC5344B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SB 125MHZ NSC5344B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SB 135MHZ NSC5344B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SB 148MHZ NSC5344B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SB 156.25MHZ NSC5344B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SB 200MHZ NSC5238B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SC 100MHZ NSC5082A NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +2.5±0.125
NP3225SC 156.25MHZ NSC5082A NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +2.5±0.125
NP3225SC 100MHZ NSC5345B NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +3.3±0.33
NP3225SC 156.25MHZ NSC5345B NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +3.3±0.33
NP3225SC 100MHZ NSC5191A NDK晶振 3.2x2.5 HCSL -40~+105 -55~+125 +2.5±0.125
NP3225SC 156.25MHZ NSC5191A NDK晶振 3.2x2.5 HCSL -40~+105 -55~+125 +2.5±0.125
NP3225SC 100MHZ NSC5346B NDK晶振 3.2x2.5 HCSL -40~+105 -55~+125 +3.3±0.33
NP3225SC 156.25MHZ NSC5346B NDK晶振 3.2x2.5 HCSL -40~+105 -55~+125 +3.3±0.33
NP3225SAB 100MHZ NSC5186A NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +2.5±0.125
NP3225SAB 125MHZ NSC5186A NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +2.5±0.125
NP3225SAB 156.25MHZ NSC5186A NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +2.5±0.125
NP3225SAB 100MHZ NSC5186B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SAB 125MHZ NSC5186B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SAB 156.25MHZ NSC5186B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SBB 100MHZ NSC5187A NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +2.5±0.125
NP3225SBB 125MHZ NSC5187A NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +2.5±0.125
NP3225SBB 156.25MHZ NSC5187A NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +2.5±0.125
NP3225SBB 100MHZ NSC5187B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SBB 125MHZ NSC5187B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SBB 156.25MHZ NSC5187B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SAD 100MHZ NSC5347B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SAD 156.25MHZ NSC5347B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SBD 100MHZ NSC5348B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SBD 156.25MHZ NSC5348B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SCD 100MHZ NSC5349B NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +3.3±0.33
NP3225SCD 156.25MHZ NSC5349B NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +3.3±0.33
NP5032SA 100MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 125MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 100MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 125MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 100MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 125MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
