6G光收發器晶振,NP3225SCD-156.25MHZ-NSC5349B,日本電波汽車專用晶振

6G光收發器晶振,NP3225SCD-156.25MHZ-NSC5349B,日本電波汽車專用晶振6G光收發器晶振,NP3225SCD-156.25MHZ-NSC5349B,日本電波汽車專用晶振

產品簡介

6G光收發器晶振,NP3225SCD-156.25MHZ-NSC5349B,日本電波汽車專用晶振，尺寸3.2*2.5mm,頻率156.25MHZ，輸出邏輯LVDS，LVDS晶振，LVDS差分晶體振蕩器，小尺寸差分晶振，156.25MHZ差分振蕩器，SPXO差分晶振，差分石英晶體振蕩器，OSC差分石英晶振，低電壓差分振蕩器，低電壓差分晶振，低功耗差分晶振，通訊差分晶振，工業級差分振蕩器，6G模塊差分晶振，光通訊差分信號輸出LVDS，路由器差分晶振，汽車音響差分晶振。

差分晶體振蕩器產品非常適合用于低端路由器、以太網、光收發器，6G兼容設備、基站、光網絡單元、SDH/SONET設備以及汽車音響、汽車電腦等領域.6G光收發器晶振,NP3225SCD-156.25MHZ-NSC5349B,日本電波汽車專用晶振.


產品詳情

6G光收發器晶振,NP3225SCD-156.25MHZ-NSC5349B,日本電波汽車專用晶振，尺寸3.2*2.5mm,頻率156.25MHZ，輸出邏輯LVDS，LVDS晶振，LVDS差分晶體振蕩器，小尺寸差分晶振，156.25MHZ差分振蕩器，SPXO差分晶振，差分石英晶體振蕩器，OSC差分石英晶振，低電壓差分振蕩器，低電壓差分晶振，低功耗差分晶振，通訊差分晶振，工業級差分振蕩器，6G模塊差分晶振，光通訊差分信號輸出LVDS，路由器差分晶振，汽車音響差分晶振。

差分晶體振蕩器產品非常適合用于低端路由器、以太網、光收發器，6G兼容設備、基站、光網絡單元、SDH/SONET設備以及汽車音響、汽車電腦等領域.6G光收發器晶振,NP3225SCD-156.25MHZ-NSC5349B,日本電波汽車專用晶振.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

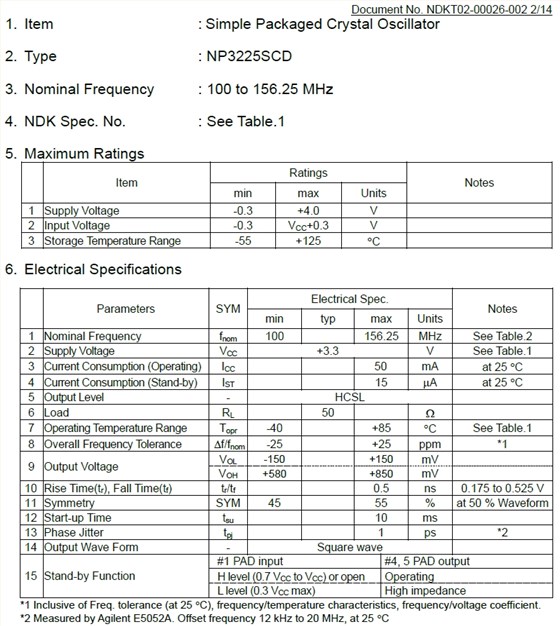

6G光收發器晶振,NP3225SCD-156.25MHZ-NSC5349B,日本電波汽車專用晶振 參數表

Item Ratings Notes
min max Units
1 Supply Voltage -0.3 +4.0 V
2 Input Voltage -0.3 VCC+0.3 V
3 Storage Temperature Range -55 +125 。C
Parameters SYM Electrical Spec. Notes
min typ max Units
1 Nominal Frequency fnom
156.25
MHz See Table.2
2 Supply Voltage VCC +3.3 V See Table.1
3 Current Consumption (Operating) ICC 60 mA at 25。C
4 Current Consumption (Stand-by) IST 30 μA at 25。C
5 Output Level - LVPECL
6 Load RL 50 Ω Connect to VCC- 2.0 V
7 Operating Temperature Range Topr [0 to +70] to [-40 to +85] 。C See Table.1
8 Overall Frequency Tolerance Δf/fnom ± 25 to ± 100 ppm See Table.1, *1
9 Output Voltage VOL VCC- 1.81 VCC- 1.62 V
VOH VCC- 1.025 VCC-0.88 V
10 Rise Time(tr), Fall Time(tf) tr/tf 1 ns 20 % to 80 % waveform
11 Symmetry SYM 45 55 % at 50 % Waveform
12 Phase Jitter tpj 1 ps *2
13 Output Wave Form - Square wave
14 Stand-by Function #1 PAD input #4, 5 PAD output
H level (0.7 VCCto VCC) or open Operating
L level (0.3 VCCmax) High impedance

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

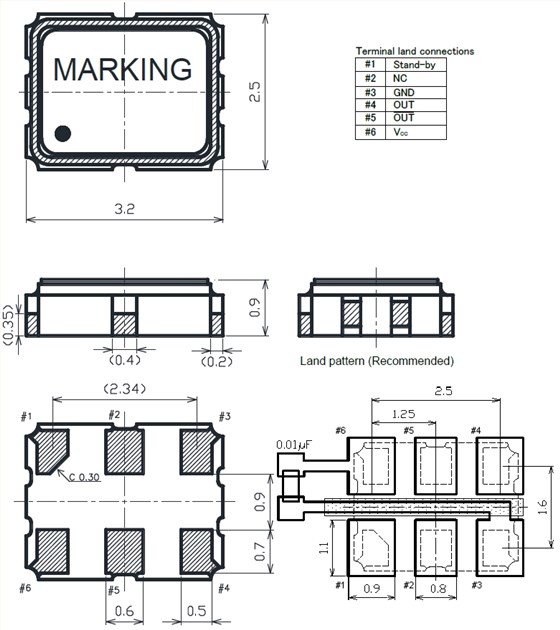

6G光收發器晶振,NP3225SCD-156.25MHZ-NSC5349B,日本電波汽車專用晶振尺寸圖NZ2520SEA

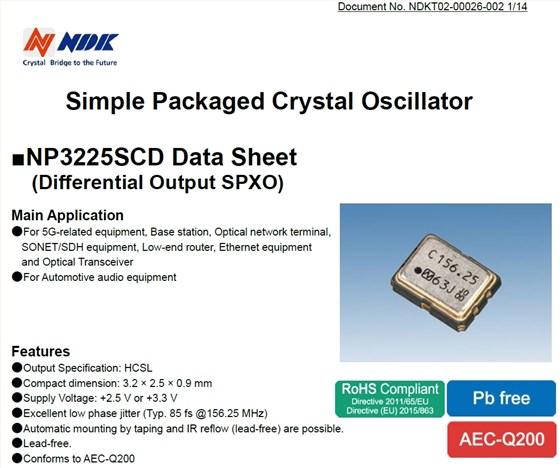

差分晶振產品特性：

LVDS差分輸出SPXO

緊湊型:3.2 x 2.5 x 0.9毫米

電源電壓:+3.3V

低相位抖動:典型。85fs @156.25MHz

通過纏繞自動安裝和IR回流(無鉛)是可能的。

無鉛

符合AEC-Q200NZ2520SEA 1NZ2520SEA 2

更多相關日本NDK晶振型號
Model Nominal frequency[MHz] Specification number Manufacturer Package size(LxW)[mm] Output specification Operating temperature rang[℃] Storage temperature range[℃] Supply voltage[V]
NP3225SB 156.25MHZ NSC5344A NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +2.5±0.125
NP3225SB 200MHZ NSC5238A NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +2.5±0.125
NP3225SB 50MHZ NSC5344B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SB 100MHZ NSC5344B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SB 125MHZ NSC5344B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SB 135MHZ NSC5344B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SB 148MHZ NSC5344B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SB 156.25MHZ NSC5344B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SB 200MHZ NSC5238B NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +3.3±0.33
NP3225SC 100MHZ NSC5082A NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +2.5±0.125
NP3225SC 156.25MHZ NSC5082A NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +2.5±0.125
NP3225SC 100MHZ NSC5345B NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +3.3±0.33
NP3225SC 156.25MHZ NSC5345B NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +3.3±0.33
NP3225SC 100MHZ NSC5191A NDK晶振 3.2x2.5 HCSL -40~+105 -55~+125 +2.5±0.125
NP3225SC 156.25MHZ NSC5191A NDK晶振 3.2x2.5 HCSL -40~+105 -55~+125 +2.5±0.125
NP3225SC 100MHZ NSC5346B NDK晶振 3.2x2.5 HCSL -40~+105 -55~+125 +3.3±0.33
NP3225SC 156.25MHZ NSC5346B NDK晶振 3.2x2.5 HCSL -40~+105 -55~+125 +3.3±0.33
NP3225SAB 100MHZ NSC5186A NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +2.5±0.125
NP3225SAB 125MHZ NSC5186A NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +2.5±0.125
NP3225SAB 156.25MHZ NSC5186A NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +2.5±0.125
NP3225SAB 100MHZ NSC5186B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SAB 125MHZ NSC5186B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SAB 156.25MHZ NSC5186B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SBB 100MHZ NSC5187A NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +2.5±0.125
NP3225SBB 125MHZ NSC5187A NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +2.5±0.125
NP3225SBB 156.25MHZ NSC5187A NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +2.5±0.125
NP3225SBB 100MHZ NSC5187B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SBB 125MHZ NSC5187B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SBB 156.25MHZ NSC5187B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SAD 100MHZ NSC5347B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SAD 156.25MHZ NSC5347B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SBD 100MHZ NSC5348B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SBD 156.25MHZ NSC5348B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SCD 100MHZ NSC5349B NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +3.3±0.33
NP3225SCD 156.25MHZ NSC5349B NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +3.3±0.33
NP5032SA 100MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 125MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 100MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 125MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 100MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 125MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400C NDK CRYSTAL 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SB 100MHZ NSC5401A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +2.5±0.125
NP5032SB 102.564MHZ NSC5401A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +2.5±0.125
NP5032SB 125MHZ NSC5401A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +2.5±0.125
NP5032SB 148.5MHZ NSC5401A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +2.5±0.125
NP5032SB 156.25MHZ NSC5401A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +2.5±0.125
NP5032SB 100MHZ NSC5402A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +3.3±0.33
NP5032SB 102.564MHZ NSC5402A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +3.3±0.33
NP5032SB 125MHZ NSC5402A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +3.3±0.33
