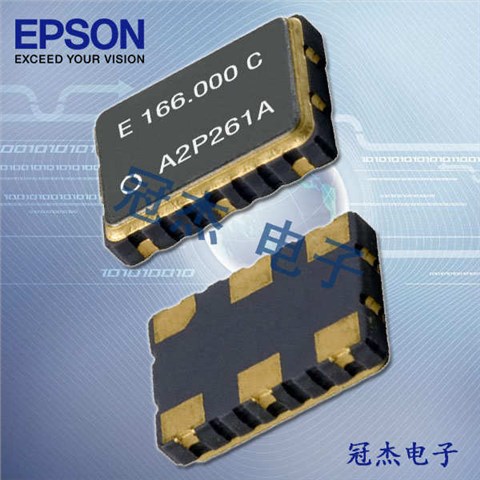

EPSON振蕩器,X1G0042710117,SG5032EAN差分晶振,6GWIFI晶振

EPSON振蕩器,X1G0042710117,SG5032EAN差分晶振,6GWIFI晶振EPSON振蕩器,X1G0042710117,SG5032EAN差分晶振,6GWIFI晶振

產品簡介

EPSON振蕩器,X1G0042710117,SG5032EAN差分晶振,6GWIFI晶振，尺寸5.00x3.20x1.20mm，頻率133MHz，輸出邏輯LV-PECL，進口LV-PECL差分振蕩器，LV-PECL輸出晶振，低電壓差分振蕩器，低抖動差分晶振，低電流差分晶振，低相位差分晶振，低耗能差分振蕩器，網絡設備差分晶振，5032mm差分晶振，儀器設備差分晶振，6G光模塊差分晶振，無線網絡差分振蕩器，網絡設備專用差分晶振，輕薄型差分晶振，OSC差分晶振，有源差分晶振.

差分晶振產品主要應用于6GWIFI，6G光模塊，無線網絡，網絡設備，交換機，基站，儀器儀表，藍牙模塊，測試與測量等領域。EPSON振蕩器,X1G0042710117,SG5032EAN差分晶振,6GWIFI晶振.

產品詳情

EPSON振蕩器,X1G0042710117,SG5032EAN差分晶振,6GWIFI晶振，尺寸5.00x3.20x1.20mm，頻率133MHz，輸出邏輯LV-PECL，進口LV-PECL差分振蕩器，LV-PECL輸出晶振，低電壓差分振蕩器，低抖動差分晶振，低電流差分晶振，低相位差分晶振，低耗能差分振蕩器，網絡設備差分晶振，5032mm差分晶振，儀器設備差分晶振，6G光模塊差分晶振，無線網絡差分振蕩器，網絡設備專用差分晶振，輕薄型差分晶振，OSC差分晶振，有源差分晶振.

差分晶振產品主要應用于6GWIFI，6G光模塊，無線網絡，網絡設備，交換機，基站，儀器儀表，藍牙模塊，測試與測量等領域。EPSON振蕩器,X1G0042710117,SG5032EAN差分晶振,6GWIFI晶振.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

EPSON振蕩器,X1G0042710117,SG5032EAN差分晶振,6GWIFI晶振參數表

Item Symbol Specifications Condition/Remarks
LV-PECL LVDS
SG3225EAN
SG5032EAN
SG7050EAN 		SG3225VAN
SG5032VAN
SG7050VAN
Output frequency range f0 133 MHz Please contact us about available frequencies.
Supply voltage VCC K : 2.5 V to 3.3 V VCC= ±10 %
Storage temperature T_stg -40 °C to +125 °C Store as bare product.
Operating temperature T_use B : -20 °C to +70 °C
G : -40 °C to +85 °C
Frequency tolerance f_tol C : ±20 × 10-6
E : ±30 × 10-6
J : ±50 × 10-6
Current consumption ICC 65 mA Max. 30 mA Max. OE = VCC
L_ECL = 50 Ω or L_LVDS = 100 Ω
f0= 700 MHz
Disable current I_dis 20 mA Max. OE = GND
Symmetry SYM 45 % to 55 % At outputs crossing point
Output voltage
(LV-PECL) 		VOH VCC- 1.0 V to VCC- 0.8 V - DC characteristics
VOL VCC-1.78 V to VCC-1.62 V -
Output voltage
(LVDS) 		VOD - 250 mV to 450 mV VOD1, VOD2 DC characteristics
dVOD - 50 mV Max. dVOD= | VOD1- VOD2|
VOS - 1.15 V to 1.35 V VOS1, VOS2
dVOS - 150 mV Max. dVOS= | VOS1- VOS2|
Output load condition
(ECL)/(LVDS) 		L_ECL 50 Ω - Terminated to VCC- 2.0 V
L_LVDS - 100 Ω Connected between OUT toOUT
Input voltage VIH 70 % VCCMin. OE terminal
VIL 30 % VCCMax.
Rise time / Fall time tr/tf 350 ps Max. - Between 20 % and 80 % of ( VOH- VOL)
- 300 ps Max. Between 20 % and 80 %of Differential Output peak to peak voltage.
Start-up time t_str 3 ms Max. Time at minimum supply voltage to be 0 s
Phase Jitter tPJ 0.6 ps Max. *1 Offset frequency : 12 kHz to 20 MHz
Frequency aging f_aging ±5 × 10-6/ year Max. +25 °C , VCC= 2.5 V or 3.3 V
First year.
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

EPSON振蕩器,X1G0042710117,SG5032EAN差分晶振,6GWIFI晶振 尺寸圖SG3225EAN，SG3225VAN,SG5032EAN,SG5032VAN,SG7050EAN,SG7050VAN-1

石英晶體振蕩器產品特性：

通過鎖相環技術實現寬頻率范圍

基本AT晶體單位

頻率范圍:73.5MHz至700MHz

電源電壓:2.5 V至3.3 V

功能:輸出使能(OE)

輸出:LV-PECL或LVDSSG3225EAN SG5032EAN SG7050EAN SG3225VAN SG5032VAN SG7050VAN 1

更多相關日本愛普生晶振型號

進口晶振編碼 品牌 型號 頻率 尺寸 輸出方式 電源電壓 工作溫度
X1G0042410100 愛普生晶振 SG3225VAN 133.333333 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410101 愛普生晶振 SG3225VAN 148.350000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410102 愛普生晶振 SG3225VAN 114.285000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410103 愛普生晶振 SG3225VAN 250.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410104 愛普生晶振 SG3225VAN 350.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410105 愛普生晶振 SG3225VAN 80.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410106 愛普生晶振 SG3225VAN 98.304000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410108 愛普生晶振 SG3225VAN 297.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610001 愛普生晶振 SG5032VAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610002 愛普生晶振 SG5032VAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610003 愛普生晶振 SG5032VAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610005 愛普生晶振 SG5032VAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610006 愛普生晶振 SG5032VAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610007 愛普生晶振 SG5032VAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610008 愛普生晶振 SG5032VAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610009 愛普生晶振 SG5032VAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610010 愛普生晶振 SG5032VAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610011 愛普生晶振 SG5032VAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610012 愛普生晶振 SG5032VAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610013 愛普生晶振 SG5032VAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610015 愛普生晶振 SG5032VAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610016 愛普生晶振 SG5032VAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610017 愛普生晶振 SG5032VAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610020 愛普生晶振 SG5032VAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610021 愛普生晶振 SG5032VAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610023 愛普生晶振 SG5032VAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610024 愛普生晶振 SG5032VAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610025 愛普生晶振 SG5032VAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610026 愛普生晶振 SG5032VAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610027 愛普生晶振 SG5032VAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610028 愛普生晶振 SG5032VAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610029 愛普生晶振 SG5032VAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610030 愛普生晶振 SG5032VAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610031 愛普生晶振 SG5032VAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610033 愛普生晶振 SG5032VAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610034 愛普生晶振 SG5032VAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610035 愛普生晶振 SG5032VAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610036 EPSON晶振 SG5032VAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610039 愛普生晶振 SG5032VAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610040 愛普生晶振 SG5032VAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610042 愛普生晶振 SG5032VAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610043 愛普生晶振 SG5032VAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610044 愛普生晶振 SG5032VAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610045 愛普生晶振 SG5032VAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610046 愛普生晶振 SG5032VAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610047 愛普生晶振 SG5032VAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610048 愛普生晶振 SG5032VAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610049 愛普生晶振 SG5032VAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610050 愛普生晶振 SG5032VAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610052 愛普生晶振 SG5032VAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610053 愛普生晶振 SG5032VAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610054 愛普生晶振 SG5032VAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610055 愛普生晶振 SG5032VAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610058 愛普生晶振 SG5032VAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610059 愛普生晶振 SG5032VAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610061 愛普生晶振 SG5032VAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610062 愛普生晶振 SG5032VAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610063 愛普生晶振 SG5032VAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610064 愛普生晶振 SG5032VAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610065 愛普生晶振 SG5032VAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610066 愛普生晶振 SG5032VAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042610067 愛普生晶振 SG5032VAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振
