6G無線網絡晶振,WXB00003GIMD‐PF,ACT小尺寸晶振,WX20B晶體，尺寸2.0x1.2mm,頻率32.768KHZ，艾西迪晶振，ACT無源晶體，32.768KHZ晶振，英國艾西迪晶振，2012mm石英晶體，音叉晶體，時鐘晶體，32.768K音叉晶體，水晶振動子，SMD無源晶振，電話機晶振，時計專用晶振，游戲機晶振，數碼相機晶振，低損耗石英晶體，高質量貼片晶振，高性能晶振，具有小體積高精度的特點.

諧振器產品應用范圍十分廣泛，常常用于電話機，時計，數字電表水表，兒童智能手表，游戲機，數碼相機，6G無線網絡，電子設備等領域.6G無線網絡晶振,WXB00003GIMD‐PF,ACT小尺寸晶振,WX20B晶體.

6G無線網絡晶振,WXB00003GIMD‐PF,ACT小尺寸晶振,WX20B晶體參數表

Parameters			Specification	Remarks
Frequency		F_nom	32.768kHz	Fundamental
Frequency tolerance		F_tol	±20ppm	At25°C±3°C
Operating temperaturerange		T_use	‐40°C ~+85°C
Storage temperature		T_stg	‐55°C ~+125°C
Temperature coefficient		K	‐0.04ppm/Δ°C²
Turnover temperature		Ti	25°C±5°C
Load capacitance		CL	7pF, 9pF,12.5pF	Otherload capacitances areavailable ‐please contactACT
Equivalent seriesresistance		ESR	80KΩmax	OtherlowerESR options are available‐pleasecontact ACT
Shunt capacitance		C0	2.0pFmax
Drivelevel		DL	0.1μWtypical	0.5μWmax
Frequency aging		F_age	±3.0ppmmax	At25°C,Firstyear
Insulationresistance		IR	500MΩmin	AtDC100V ±15V

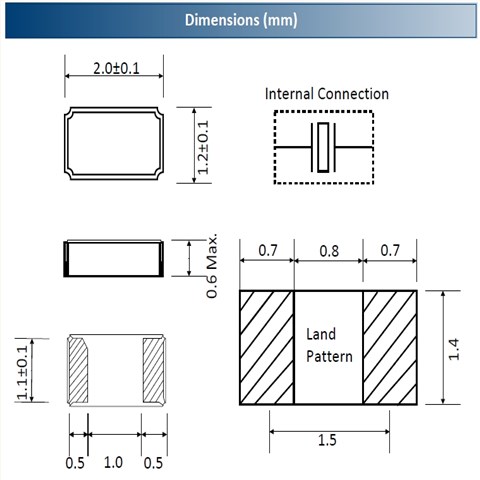

6G無線網絡晶振,WXB00003GIMD‐PF,ACT小尺寸晶振,WX20B晶體尺寸圖

無源晶振產品特性：

符合RoHS和REACH標準

真空密封微型陶瓷封裝，穩定性極佳

低功耗

更多相關艾西迪ACT CRYSTAL型號，請咨詢我們！
