首頁 愛普生晶振

EPSON差分振蕩器,X1G0042810005,MG7050VAN有源晶振,6G路由器晶振

EPSON差分振蕩器,X1G0042810005,MG7050VAN有源晶振,6G路由器晶振

產品簡介

EPSON差分振蕩器,X1G0042810005,MG7050VAN有源晶振,6G路由器晶振，尺寸為7.0*5.0mm,頻率200MHZ,輸出邏輯LVDS，OSC差分晶振，LVDS差分輸出振蕩器，貼片LVDS晶振，愛普生差分晶振，差分石英晶體振蕩器，OSC差分石英晶振，低電壓差分振蕩器，低功耗差分晶振，有源差分晶振，高頻差分振蕩器，通訊差分晶振，本產品是利用鋸波諧振器的基本振蕩的LVDS輸出的高頻振蕩器。這實現了頻率為100~700MHz的低抖動和低噪聲，適用于PCI Express等參考時鐘。

差分晶振產品非常適合用于無線通信，網絡設備，智能家居，無線模塊，測量測試，儀器設備，服務器，存儲，網絡，OTN等。EPSON差分振蕩器,X1G0042810005,MG7050VAN有源晶振,6G路由器晶振.


產品詳情

EPSON差分振蕩器,X1G0042810005,MG7050VAN有源晶振,6G路由器晶振，尺寸為7.0*5.0mm,頻率200MHZ,輸出邏輯LVDS，OSC差分晶振，LVDS差分輸出振蕩器，貼片LVDS晶振，愛普生差分晶振，差分石英晶體振蕩器，OSC差分石英晶振，低電壓差分振蕩器，低功耗差分晶振，有源差分晶振，高頻差分振蕩器，通訊差分晶振，本產品是利用鋸波諧振器的基本振蕩的LVDS輸出的高頻振蕩器。這實現了頻率為100~700MHz的低抖動和低噪聲，適用于PCI Express等參考時鐘。

差分晶振產品非常適合用于無線通信，網絡設備，智能家居，無線模塊，測量測試，儀器設備，服務器，存儲，網絡，OTN等。EPSON差分振蕩器,X1G0042810005,MG7050VAN有源晶振,6G路由器晶振.

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

EPSON差分振蕩器,X1G0042810005,MG7050VAN有源晶振,6G路由器晶振參數表

1) Absolute maximum ratings
Parameter Symbol Unit Min. Typ. Max Notes
Supply voltage VCC V -0.5 - +4.0
Storage temperature TSTG 。C -55 - +125 Store as bare product after packing
Input voltage VIN V -0.5 - VCC+0.5
2) Operating conditions
Parameter Symbol Unit Min. Typ. Max Notes
Supply voltage VCC V 2.97 3.3 3.63 Part C Vcc, Vcc1, Vcc2
need same voltage
2.375 2.5 2.625 Part D
Output frequency fo MHz
- 125

- 200 FSEL=LOW
2-outputs: OUT2
4-outputs: OUT3,OUT4
Operating temperature
range 		Tuse °C 0 - +70 Part A
-20 - +70 Part B
-5 - +85 Part D
Output load condition L_LVDS Ω 100 Connected between OUTnP and OUTnN
3) Frequency characteristics
Parameter Symbol Unit Min. Typ. Max Notes
Frequency tolerance f_tol × 10-6 -50 - +50 Part J
-100 - +100 Part L
Frequency aging f_age × 10-6 -10 - +10 Part NFirst year、25°C
Include on frequency tolerance Part A *110 years、25°C
*1 “A” is not acceptable when Frequency tolerance is “J” and Operating temperature is “B” or “D” .
4) Characteristics
[GND=0.0 V]
Parameter Symbol Unit Min. Typ. Max Notes
Oscillation start up time T_str ms - 5 10
Current consumption ICC mA - 45 56 VCC=3.3V、2-outputs OE= VCC、
with output
load
- 50 72 VCC=3.3V、4-outputs
- 35 50 VCC=2.5V、2-outputs
- 40 66 VCC=2.5V、4-outputs
Disable current I_dis mA - 8 20 VCC=3.3V OE=GND
- 7 18 VCC=2.5V
Rise time tr ps - 200 400 20%→80% of (VOD1+VOD2)
Fall time tf ps - 200 400 80%→20% of (VOD1+VOD2)
Symmetry SYM % 45 50 55
Output offset voltage VOS V 1.125 1.25 1.375 DC characteristics
Output voltage VOD mV 247 350 454 DC characteristics
High input voltage VIH V 70 %Vcc - Vcc+0.3 OE, FSEL terminal
Low Input voltage VIL V -0.3 - 30 %Vcc OE, FSEL terminal
Input current IIH μA - - 2 VIN=Vcc, OE, FSEL terminal
IIL -60 - -20 VCC=3.3V VIN=GND
-45 - -15 VCC=2.5V
Disable delay time tpxz ns - - 100 OE terminal “H” → “L”
Enable delay time tpzx ns - - 100 OE terminal “L” → “H”
Skew tskew ps - 20 50
Phase Jitter *2 tPJ ps - 0.16(0.19) 0.3 f0=100MHz, Vcc=3.3V(2.5V)
- 0.15(0.18) f0=125MHz, Vcc=3.3V(2.5V)
- 0.14(0.17) f0=156.25MHz, Vcc=3.3V(2.5V)
- 0.13(0.15) f0=212.5MHz, Vcc=3.3V(2.5V)
- 0.11(0.12) f0=312.5MHz, Vcc=3.3V(2.5V)
- 0.05(0.06) f0=700MHz, Vcc=3.3V(2.5V)
- - 0.5 FSEL=LOW, 50 MHz ≤ fo < 100 MHz
2-outputs: OUT2
4-outputs: OUT3,OUT4
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

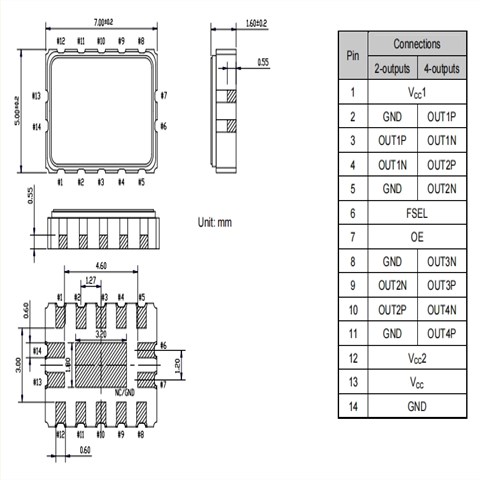

EPSON差分振蕩器,X1G0042810005,MG7050VAN有源晶振,6G路由器晶振尺寸圖MG7050VAN

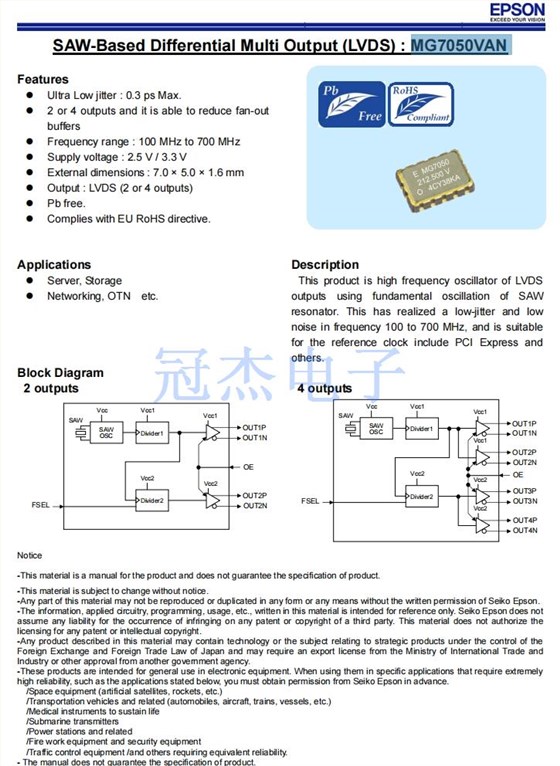

差分晶體振蕩器產品特性：

超低抖動:0.3 ps最大值。

2路或4路輸出，能夠減少扇出

緩沖區

頻率范圍:100mhz ~ 700mhz

供電電壓:2.5 V / 3.3 V

外形尺寸:7.0 × 5.0 × 1.6 mm

整機輸出:LVDS(2或4輸出)

無鉛。

符合歐盟RoHS指令。MG7050VAN 1

更多相關日本愛普生EPSON晶振型號

編碼 品牌 型號 頻率 尺寸 輸出方式 電源電壓 工作溫度
X1M0004110009 愛普生晶振 MG7050EAN 150.000000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0004110010 愛普生晶振 MG7050EAN 150.000000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0004110011 愛普生晶振 MG7050EAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0004110012 愛普生晶振 MG7050EAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0004110013 愛普生晶振 MG7050EAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0004110014 愛普生晶振 MG7050EAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0004110015 愛普生晶振 MG7050EAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0004110016 愛普生晶振 MG7050EAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0004110017 愛普生晶振 MG7050EAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0004110018 愛普生晶振 MG7050EAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0004110019 愛普生晶振 MG7050EAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0004110020 愛普生晶振 MG7050EAN 156.253906 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0004110021 愛普生晶振 MG7050EAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0004110022 愛普生晶振 MG7050EAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0004110023 愛普生晶振 MG7050EAN 156.253906 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0004110024 愛普生晶振 MG7050EAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0004110025 愛普生晶振 MG7050EAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.375 to 2.625 V -20 to 70 °C
X1M0004110026 愛普生晶振 MG7050EAN 312.500000 MHz 7.00 x 5.00 x 1.60 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0004210002 愛普生晶振 MG7050VAN 212.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0004210003 愛普生晶振 MG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0004210004 愛普生晶振 MG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.375 to 2.625 V -20 to 70 °C
X1M0004210005 愛普生晶振 MG7050VAN 644.531250 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.375 to 2.625 V -20 to 70 °C
X1M0004210006 愛普生晶振 MG7050VAN 322.265625 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.375 to 2.625 V -20 to 70 °C
X1M0004210007 愛普生晶振 MG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210008 愛普生晶振 MG7050VAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210009 愛普生晶振 MG7050VAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210010 愛普生晶振 MG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210011 愛普生晶振 MG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210012 愛普生晶振 MG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210013 愛普生晶振 MG7050VAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210014 愛普生晶振 MG7050VAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210015 愛普生晶振 MG7050VAN 322.265625 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0004210016 愛普生晶振 MG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1G0058810001 愛普生晶振 SG2520EGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0058810002 愛普生晶振 SG2520EGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0058810003 愛普生晶振 SG2520EGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0058810005 愛普生晶振 SG2520EGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LV-PECL 3.135 to 3.465 V -40 to 105 °C
X1G0059010001 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 85 °C
X1G0059010002 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
X1G0059010003 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1G0059010004 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 105 °C
X1G0059010006 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1G0059010007 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 105 °C
X1G0059010008 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 105 °C
X1G0059210001 愛普生晶振 SG2520EHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0059410001 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 85 °C
X1G0059410002 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1G0059410003 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 105 °C
X1G0059410004 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
X1G0059410005 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 105 °C
X1G0059410006 愛普生晶振 SG2520VHN 155.520000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 85 °C
X1G0059410007 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
X1G0059410008 愛普生晶振 SG2520VHN 174.703000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1G0059410009 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 105 °C
X1G0059410010 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 85 °C
X1G0059410011 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
X1G0059410603 愛普生晶振 SG2520VHN 400.000000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1G0059410604 愛普生晶振 SG2520VHN 400.000000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1G0059410605 愛普生晶振 SG2520VHN 467.529297 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
