首頁 愛普生晶振

X1G0053311007,EPSON愛普生晶振,6G模塊晶振,SG7050VEN差分晶振

X1G0053311007,EPSON愛普生晶振,6G模塊晶振,SG7050VEN差分晶振X1G0053311007,EPSON愛普生晶振,6G模塊晶振,SG7050VEN差分晶振

產品簡介


X1G0053311007,EPSON愛普生晶振,6G模塊晶振,SG7050VEN差分晶振，尺寸7.0*5.0mm,頻率50MHZ,輸出邏輯LVDS，差分有源振蕩器，LVDS差分振蕩器，OSC差分晶振，低電壓差分振蕩器，低相位差分晶振，低損耗差分晶振，低相噪差分晶振，6G將使通信流量呈指數級增長。6G通信網絡要求高速寬頻帶，同時把噪音降到最低。這可以通過高頻率實現用于通信設備的低抖動參考時鐘。使用上面的XO，客戶可以輸入一個高頻率參考(高達500mhz)與極低的相位抖動和功率，從一個基本模式晶體實現極好的相位噪聲。

LVDS晶振產品比較適合用于測試和測量設備，工廠自動化，網絡設備(路由器、交換機、光模塊等)，數據中心，高速轉換器，如ADC和DAC等應用程序.X1G0053311007,EPSON愛普生晶振,6G模塊晶振,SG7050VEN差分晶振.


產品詳情

X1G0053311007,EPSON愛普生晶振,6G模塊晶振,SG7050VEN差分晶振，尺寸7.0*5.0mm,頻率50MHZ,輸出邏輯LVDS，差分有源振蕩器，LVDS差分振蕩器，OSC差分晶振，低電壓差分振蕩器，低相位差分晶振，低損耗差分晶振，低相噪差分晶振，6G將使通信流量呈指數級增長。6G通信網絡要求高速寬頻帶，同時把噪音降到最低。這可以通過高頻率實現用于通信設備的低抖動參考時鐘。使用上面的XO，客戶可以輸入一個高頻率參考(高達500mhz)與極低的相位抖動和功率，從一個基本模式晶體實現極好的相位噪聲。

LVDS晶振產品比較適合用于測試和測量設備，工廠自動化，網絡設備(路由器、交換機、光模塊等)，數據中心，高速轉換器，如ADC和DAC等應用程序.X1G0053311007,EPSON愛普生晶振,6G模塊晶振,SG7050VEN差分晶振.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

X1G0053311007,EPSON愛普生晶振,6G模塊晶振,SG7050VEN差分晶振參數表

Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Maximum supply voltage VCC -0.5 - 4 V fo≤200 MHz
-0.5 - 5 V fo > 200 MHz
Input voltage Vin -0.5 - VCC+ 0.5 V OE terminal
Storage temperature range T_stg -55 - 125 ºC
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Supply voltage VCC 2.375 2.5 2.625 V Suffix: D
3.135 3.3 3.465 V Suffix: C
Supply voltage GND 0.0 0.0 0.0 V
Operating temperature range T_use -40 +25 +85 ºC Suffix: G
-40 +25 +105 ºC Suffix: H
LVDS load condition L_LVDS 100 Ω Connected between
OUT and
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Output frequency *1 fo

50 MHz SG3225VEN / SG7050VEN
200 - 500 MHz SG5032VEN
Frequency tolerance f_tol -25 - +25 ×10-6 *2
Suffix: D
fo≤200 MHz, T_use: G
-50 - +50 ×10-6 *3
Suffix: J
T_use: G
*3
Suffix: J
fo≤200 MHz, T_use: H
-100 - +100 ×10-6 *3
Suffix: L
T_use: H
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Startup time t_str - - 10 ms t = 0 at 90 %VCC
Current consumption ICC - - 25 mA
Disable current I_dis - - 15 mA OE = GND
Rise time / Fall time tr / tf - - 0.3 ns 20 % - 80 % of differential
output peak to peak voltage
Symmetry SYM 45 50 55 % At output crossing point
Output voltage VOD 250 350 450 mV DC characteristics
dVOD - - 50 mV
VOS 1.15 1.25 1.35 V
dVOS - - 50 mV
Input voltage VIH 70 % VCC - - V OE terminal
VIL - - 30 % VCC V
Output disable time tstp_oe - - 100 ns OE terminal HIGH → LOW
Output enable time tsta_oe - - 200 ns fo ≤ 200 MHz,
OE terminal LOW → HIGH
- - 500 ns fo > 200 MHz,
OE terminal LOW → HIGH
Phase jitter(fo = 25 MHz) tPJ - 164.8 - fs Offset frequency
12 kHz to 5 MHz
Phase jitter(fo = 50 MHz) tPJ - 183.1 - fs Offset frequency
12 kHz to 20 MHz
Phase jitter(fo = 100 MHz) tPJ - 96.1 150 fs
Phase jitter(fo = 125 MHz) tPJ - 71.1 110 fs
Phase jitter(fo = 156.25 MHz) tPJ - 59.6 90 fs
Phase jitter(fo = 212.5 MHz) tPJ - 36.2 80 fs
Phase jitter(fo = 312.5 MHz) tPJ - 37.0 80 fs
Phase jitter(fo = 491.52 MHz) tPJ - 29.2 60 fs
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

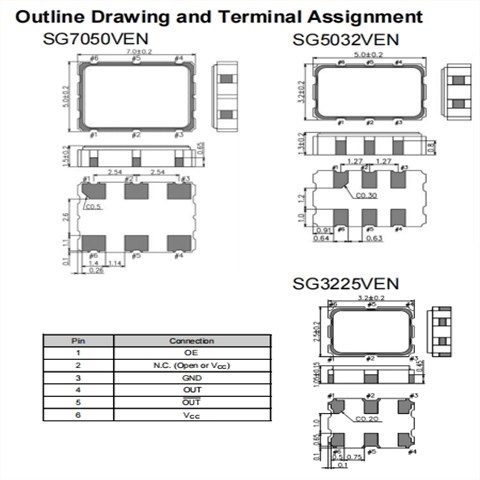

X1G0053311007,EPSON愛普生晶振,6G模塊晶振,SG7050VEN差分晶振尺寸圖

SG3225VEN SG5032VEN SG7050VEN 1

產品特性：

有源晶體振蕩器(SPXO)

頻率范圍: 25MHz至500MHz

輸出:LVDS

供電電壓:2.5 V。/ 3.3 V類型

工作溫度:-40℃至+105℃

低相位抖動:60fs(fo = 156.25MHz)

SG3225VEN SG5032VEN SG7050VEN 1

更多相關日本愛普生晶振型號

編碼 進口晶振品牌 型號 頻率 尺寸 輸出方式 電源電壓 工作溫度
X1G0042610106 愛普生晶振 SG5032VAN 122.880000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610107 愛普生晶振 SG5032VAN 153.600000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610108 愛普生晶振 SG5032VAN 307.200000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610109 愛普生晶振 SG5032VAN 614.400000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810001 愛普生晶振 SG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810002 愛普生晶振 SG7050VAN 125.006250 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810004 愛普生晶振 SG7050VAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810005 愛普生晶振 SG7050VAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810006 愛普生晶振 SG7050VAN 400.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810007 愛普生晶振 SG7050VAN 106.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810008 愛普生晶振 SG7050VAN 212.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810009 愛普生晶振 SG7050VAN 74.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810010 愛普生晶振 SG7050VAN 148.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810011 愛普生晶振 SG7050VAN 75.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810012 愛普生晶振 SG7050VAN 150.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810014 愛普生晶振 SG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810015 愛普生晶振 SG7050VAN 312.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810016 愛普生晶振 SG7050VAN 312.515625 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810017 愛普生晶振 SG7050VAN 161.132800 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810020 愛普生晶振 SG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810021 愛普生晶振 SG7050VAN 125.006250 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810023 愛普生晶振 SG7050VAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810024 愛普生晶振 SG7050VAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810025 愛普生晶振 SG7050VAN 400.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810026 愛普生晶振 SG7050VAN 106.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810027 愛普生晶振 SG7050VAN 212.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810028 愛普生晶振 SG7050VAN 74.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810029 愛普生晶振 SG7050VAN 148.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810030 愛普生晶振 SG7050VAN 75.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810031 愛普生晶振 SG7050VAN 150.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810032 愛普生晶振 SG7050VAN 155.520000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810033 EPSON晶振 SG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810034 愛普生晶振 SG7050VAN 312.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810035 愛普生晶振 SG7050VAN 312.515625 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810036 愛普生晶振 SG7050VAN 161.132800 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810038 愛普生晶振 SG7050VAN 700.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810039 愛普生晶振 SG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810040 愛普生晶振 SG7050VAN 125.006250 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810042 愛普生晶振 SG7050VAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810043 愛普生晶振 SG7050VAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810044 愛普生晶振 SG7050VAN 400.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810045 愛普生晶振 SG7050VAN 106.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810046 愛普生晶振 SG7050VAN 212.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
